0i/0i Mate - Model C Parameter manual Page 92

Parameter manual
4.DESCRIPTION OF PARAMETERS B-64120EN/01
- 80 -
ACD Function for automatically reducing the feedrate at corners (automatic
corner override function)
0 : The function is not used.
1 : The function is used.
#7 #6 #5 #4 #3 #2 #1 #0
LS2 G8S CSD FWB
1602
LS2 G8S CSD BS2 COV FWB
[Data type] Bit
FWB Cutting feed acceleration/deceleration before interpolation
0 : Type A of acceleration/deceleration before interpolation is used.
1 : Type B of acceleration/deceleration before interpolation is used.

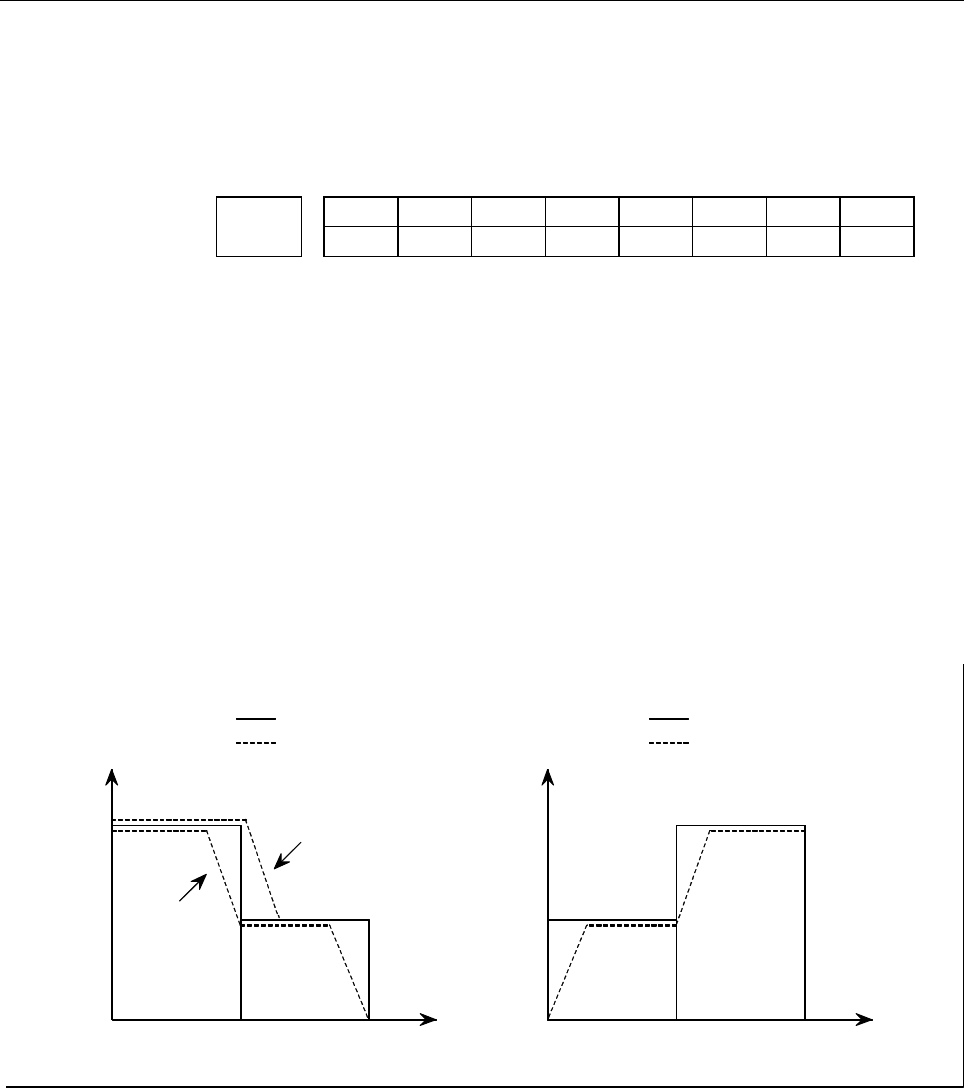

Type A:
When a feedrate is to be changed by a command, acceleration/
deceleration starts after the program enters the block in which the
command is specified.
Type B:
When a feedrate is to be changed by a command, deceleration
starts and terminates at the block before the block in which the
command is specified.
When a feedrate is to be changed by a command, acceleration
starts after the program enters the block in which the command is
specified.
F1
F2
F3
Feedrate
Time
N1 N2
F1
F2
F3
Feedrate
Time
N1 N2
Type A
Specified feedrate
Feedrate after
acceleration/deceleration
before interpolation is applied
Specified feedrate
Point 1
<Example of a deceleration process> <Example of a acceleration process>
Type B
To change the feedrate from F3 to F2, it is necessary to start reducing the feedrate at point 1.
Feedrate after
acceleration/deceleration
before interpolation is applied
COV The outer arc cutting feedrate change function of the automatic corner
override function is:
0 : Not used.
1 : Used.
BS2 The type of acceleration/deceleration after interpolation in cutting feed
in advanced preview control mode is:
0 : Specified by bit 6 (LS2) of parameter No. 1602.
1 : Bell-shaped acceleration/deceleration.
