SUPER CAPi T Operators manual Page 110

Operators manual
B–63284EN/03
7. CHECKING MACHINING PROGRAMSOPERATION
91
This optional function can be used to check for interference between a tool
and a workpiece, chuck, or tailstock in animated simulation for turning.

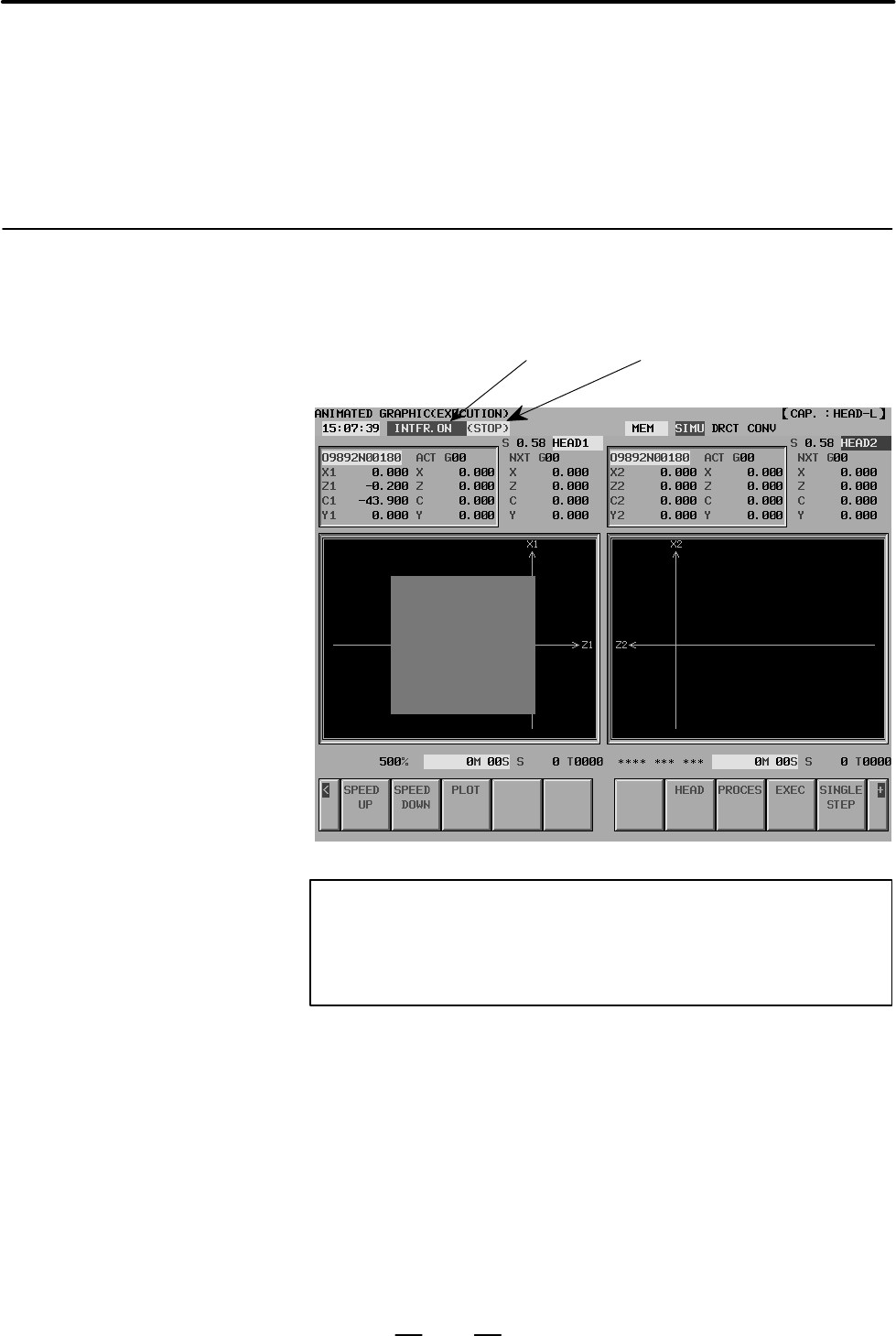

When animation is selected using the soft key on the program selection
menu, the animated simulation screen appears, as shown below.
Interference check mode indicator ON/OFF Stop/continue
NOTE
If a blank is displayed in gradation, as shown below, this
function cannot be used. In this case, the interference
check mode indicator does not appear.
7.6
INTERFERENCE
CHECK FUNCTION IN
ANIMATED
SIMULATION
(OPTION)
7.6.1
Interference Check in
Animated Simulation
