SUPER CAPi T Operators manual Page 577

Operators manual

Page of 829

/ 829

2. FUNCTIONS RELATED

TO MACHINING

B–63284EN/03

ADDITIONAL FUNCTIONS OF SERIES

BH0M/BH1D/BH2D, BH1E/BH2E/BH3E,

AND BH1F/BH2F/BH3F

558

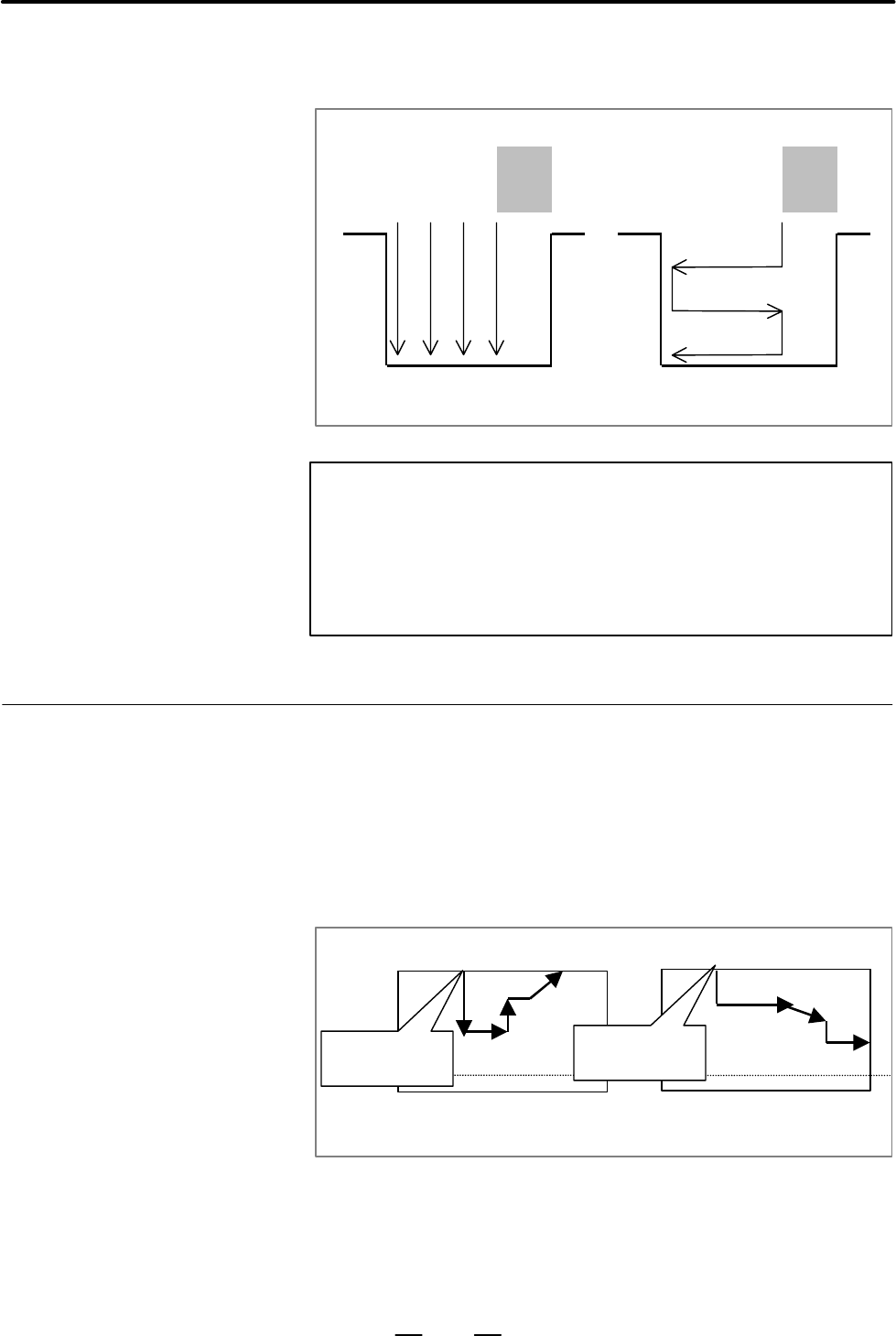

JPROC MOVE.: The cutting method is selected from “STANDARD”

and “HIGH SPEED”. This is for the rough machining.

Standard High speed

NOTE

1 Among the above data items, those preceded by a J mark

are displayed on the detail data screen.

2 The data other than the above–mentioned displayed on the

program screen and the detailed data screen, are the same

to the grooving or the bar machining content.

Final contour figure is input. Open figure is also input.

Concerning the input figure, the contour figure can be input just like the

bar machining.

D The contour figure is input in the following direction. (Same as for a

trapezoid groove)

Outer/Inner : Monotonous decrease along Z–axis

Face : Monotonous increase along X–axis

Closed figure

Open figure

Start point of

the figure

Start point of

the figure

2.2.3

Detail of Figure Data
