SUPER CAPi T Operators manual Page 492

Operators manual

Page of 829

/ 829

B–63284EN/03

3. CREATING MACHINING PROGRAMS

FOR A LATHE HAVING THE Y–AXIS

MACHINING FUNCTION

TYPES OF MACHINING

PROGRAMS

473

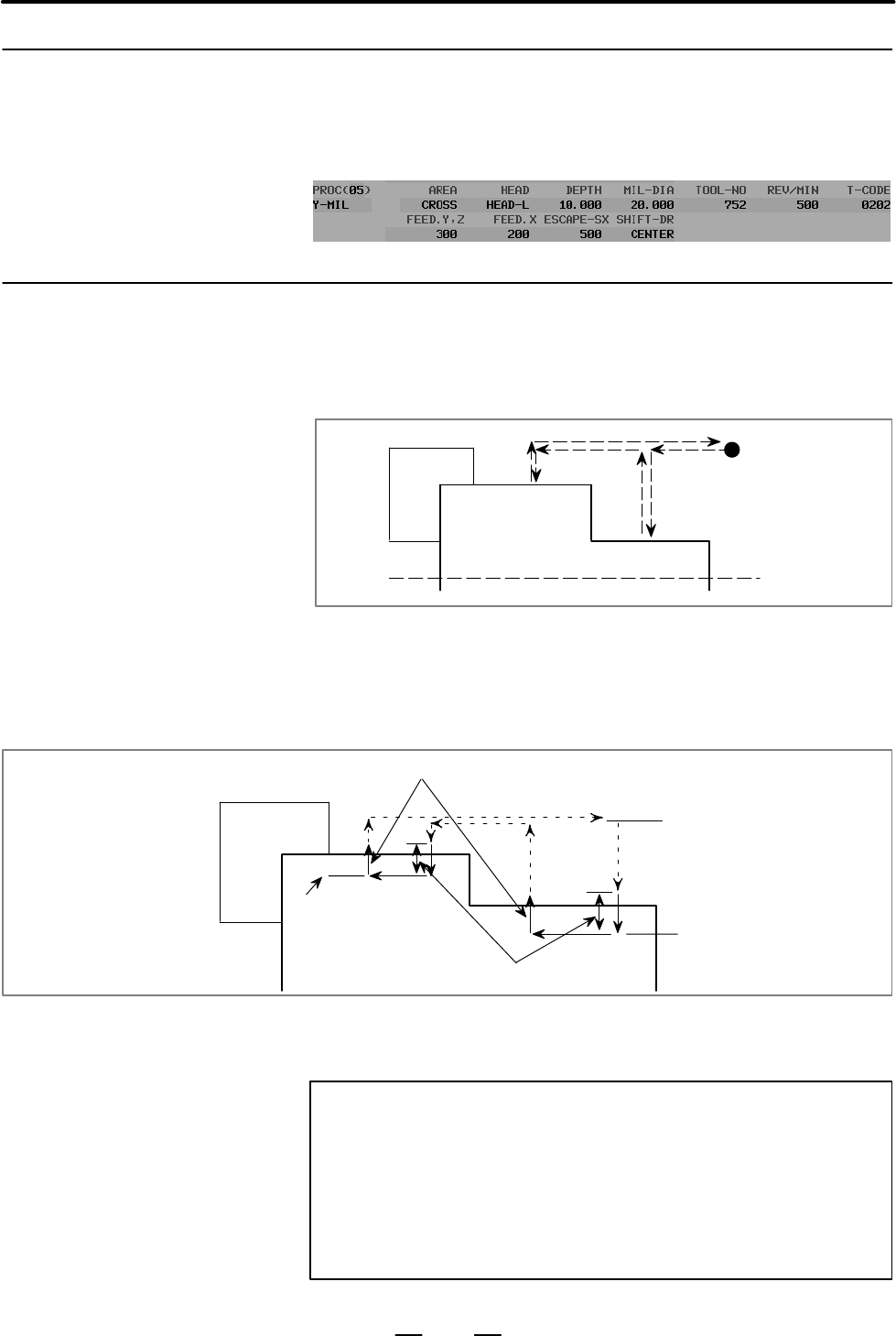

When the cursor is moved to the end of a program, a new process is

automatically created and the machining mode soft keys are displayed.

To select Y–axis milling, press the [Y–MILLING] soft key, then the

[SIDE CUT] soft key.

J START PNT. X: X coordinate of the point to which the tool

retracts in successive milling

Z: Z coordinate of the point to which the tool

retracts in successive milling

Machining start point

DEPTH : Depth of a cut in milling (radius). The milling operation

starts when the end mill reaches the point which is the depth

of cut away from the X coordinate of the bottom of the cut,

which is specified as the figure data.

X coordinate of the bottom

of the cut (figure data)

Depth of cut (radius)

X coordinate of the bottom

of the cut (figure data)

X coordinate of the machining

start point

Retraction (at escape speed X in the G01 mode)

MIL–DIA : Major diameter of the end mill to be used for

side–face machining

NOTE

The automatic tool selection function selects an end mill for

side–face machining whose nominal diameter is smaller

than or equal to the groove diameter. In Y–axis milling, the

machining width is limited to the width of the end mill used.

The machined width may be smaller than the diameter of

the end mill.

3.4.1

Machining Type

Selection

3.4.2

Setting
