SUPER CAPi T Operators manual Page 216

Operators manual

Page of 829

/ 829

B–63284EN/03

13. SETTING DATA

OPERATION

197

: Specify when a tool is registered.

: Specify by pressing the [HEAD–L] or

[HEAD–R] soft key.

NOTE

This is effective only for the two–/three–path lathes.

: Specify by pressing the [FACE] or [CROSS]

soft key.

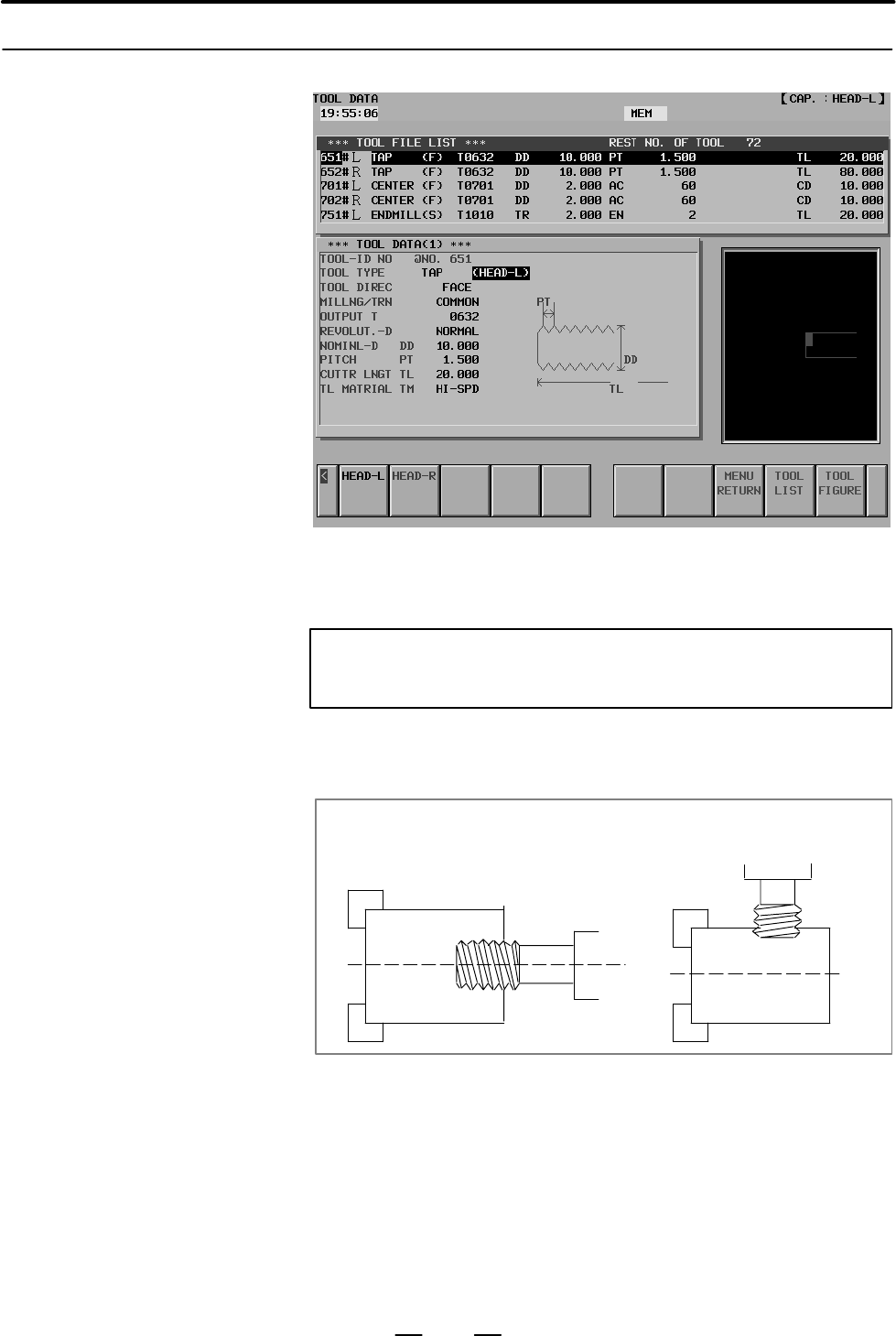

(1) Tapping on end faces

(turning or C–axis machining, Y–axis

machining)

(2) Tapping on side faces

(C–axis machining, Y–axis

machining)

[CROSS]

: Specify by pressing one of the [TURN],

[MILLNG], and [COMMON] soft keys.

:T–code to be output when a machining program

is executed (T4 digits/T6 digits)

: Direction in which a spindle or rotating tool

rotates during cutting

Specify by pressing the [NORMAL] (= M03) or

[REVERS] (= M04) soft key.

13.1.7

Tool Data for Tapping

TOOL TYPE

Tool post selection

TOOL DIREC

MILLNG/TRN

OUTPUT T

REVOLUT.–D
