8. EDITING MACHINING PROGRAMS

B–63284EN/03

OPERATION

102

(4) Using a cursor key, move the cursor to the part of the contour data

to be changed.

(5) Using numeric keys, enter new numeric data, then press the INPUT

key.

(6) Press the [ALTER] soft key.

(7) The contour is recomputed and the results are displayed. The color

of the frame of the window guidance returns to sky blue.

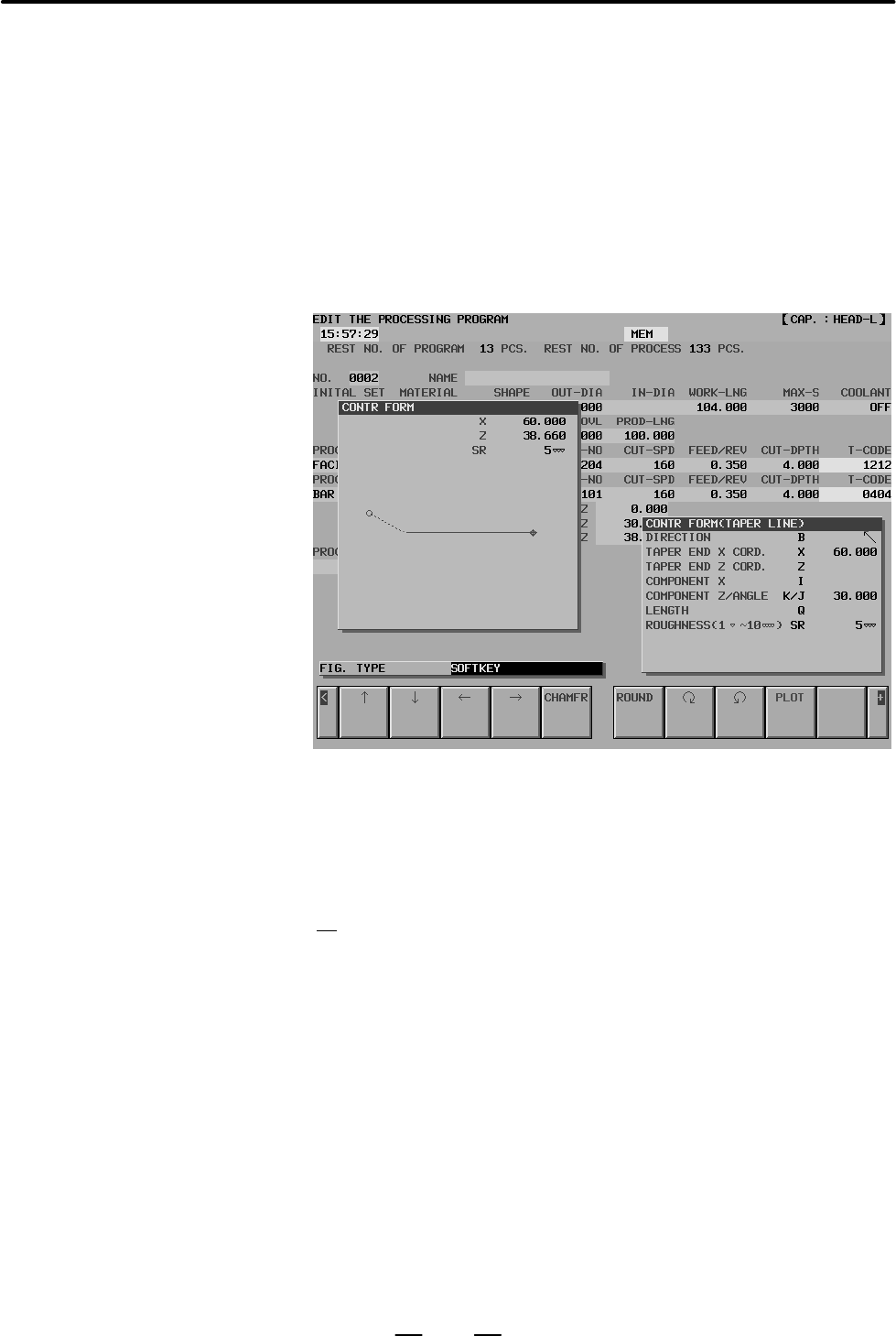

Changing the angle of a taper line from 30° to 60°

Move the cursor (J) to the figure to be changed, then

[ALTER]

Move the cursor in the window guidance (yellow frame) to the angle, then

INPUT

[ALTER]

By performing the operation above, the contour is recomputed and the

new figure data is displayed. The new figure is displayed on the same

screen.

Example
