7. CHECKING MACHINING PROGRAMS

B–63284EN/03

OPERATION

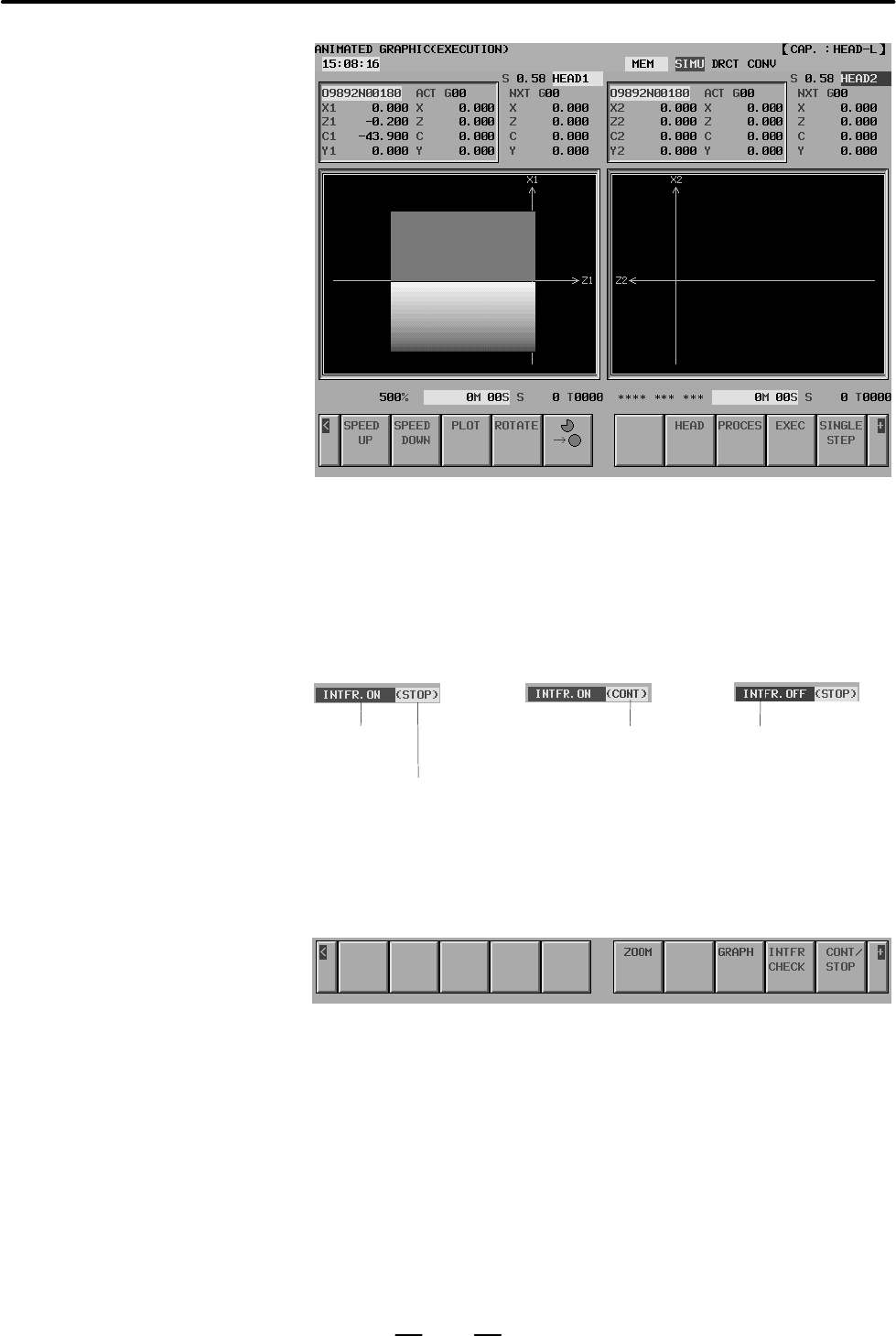

When the [EXEC] soft key is pressed, simulation is performed while

turning tools are checked for interference with the workpiece, turret, or

tailstock.

Whether to perform further interference checks and whether to continue

simulation if interference occurs can be selected. The current selection

appears at the upper left corner of the screen.

Continues simulation even if

interference occurs.

Performs

interference

checks.

Does not perform interference

checks.

Stops simulation if interference occurs.

In the initial status immediately after power–on, interference check mode

is set to ON, and simulation stop/continue mode for interference is set to

STOP. The modes can be switched by using the [INTER CHECK] and

[CONT/STOP] soft keys.

If interference occurs when interference check mode is set to ON and

simulation stop/continue mode for interference is set to STOP, a warning

message appears, as shown below, causing animated simulation to pause.
