SUPER CAPi T Operators manual Page 96

Operators manual

Page of 829

/ 829

B–63284EN/03

7. CHECKING MACHINING PROGRAMSOPERATION

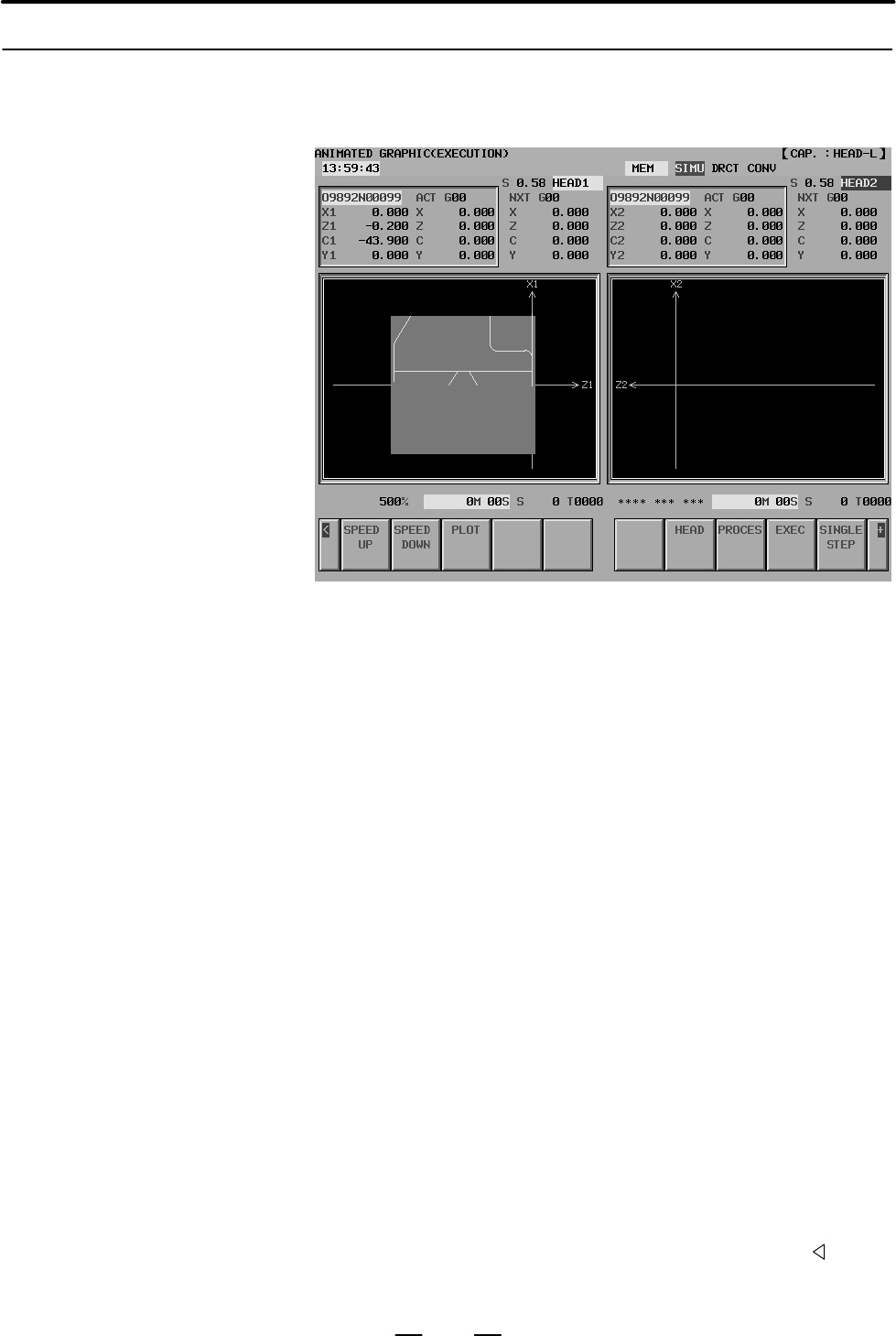

When the [ANIMA.], [ANIMA + RT.CH], or [RT.CH] key is pressed, the

following simulation screen is displayed:

[SINGLE STEP] : Causes a single–block stop while continuous

simulation is being executed. Or, starts single–

block simulation.

[EXEC] : Starts the ordinary simulation drawing.

[PROCES] : Starts simulating the machining in units of

processes. The output of M01 causes a

single–block stop. (To output M01 at the end of

each process, set bit 4 (M1O) of parameter 9774 to

1.)

[HEAD] : Searches for the beginning of a machining

program and initializes the graphic drawing.

[PROG ON/OFF] : Displays or deletes a converted NC program

during NC program conversion.

[PLOT] : Draws the final product figure over the workpiece

figure.

[SPEED DOWN] : Reduces the drawing speed.

[SPEED UP] : Increases the drawing speed.

The above soft keys are valid only during machining simulation.

Animated drawings showing the actual machining status can also be

displayed during machining (drawing during machining). To do this,

press the GRAPH key to display the screen illustrated above, then start

the machining.

When display of this machining simulation screen was selected from the

main menu screen of the conversational function, press the [

] key to

return to the main menu screen.

7.2.2

Simulating Machining
