6. CREATING MACHINING PROGRAMSOPERATION

MAX–S (maximum spindle speed) : Maximum spindle speed under

constant surface–speed control

COOLANT : Coolant commonly used in this machining

program. Select the appropriate coolant using the

following soft keys. (The selection pattern

changes, depending on the setting of bit 7 (OIL) of

parameter No. 9763. For details, see Appendix A

“Parameters.”)

Initial value of coolant data for each processes is automatically deter-

mined by this setting.

FINISHING X/Z (finishing allowance X/Z) : Finishing allowance in the

X–axis (diameter) and Z–axis direction

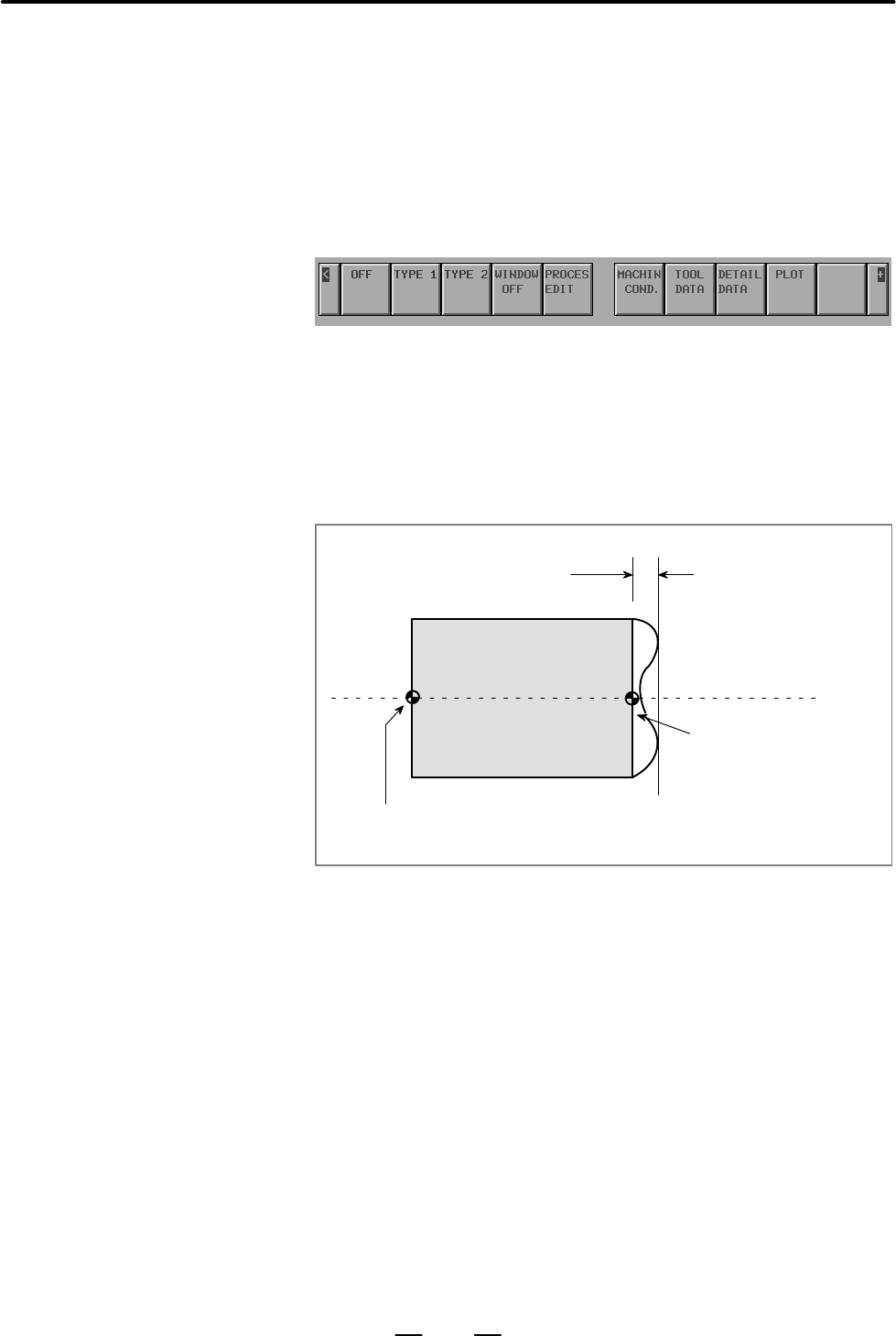

END REMOVAL (end face of a workpiece) : Machining allowance at end

facing

Program reference position (on the edge of the chuck)

Degree of cutting at

the end face

(such as mill scale)

Program reference position

(on the edge of a workpiece)

PROD–LNG (length of a product) : Length of a finished product

End–facing allowance for tool post 2 is obtained by subtracting (end face

of a workpiece) and (length of a product) from (length of a workpiece).

Length of a finished product is effective only when two–path lathes with

two opposing spindles and lathe with subspindles are used.
