B–63284EN/03

12. DIRECT OPERATION FOR

MACHINING PROGRAMS

CREATED CONVERSATIONALLY

OPERATION

163

(5) Measuring the outside diameter of a workpiece

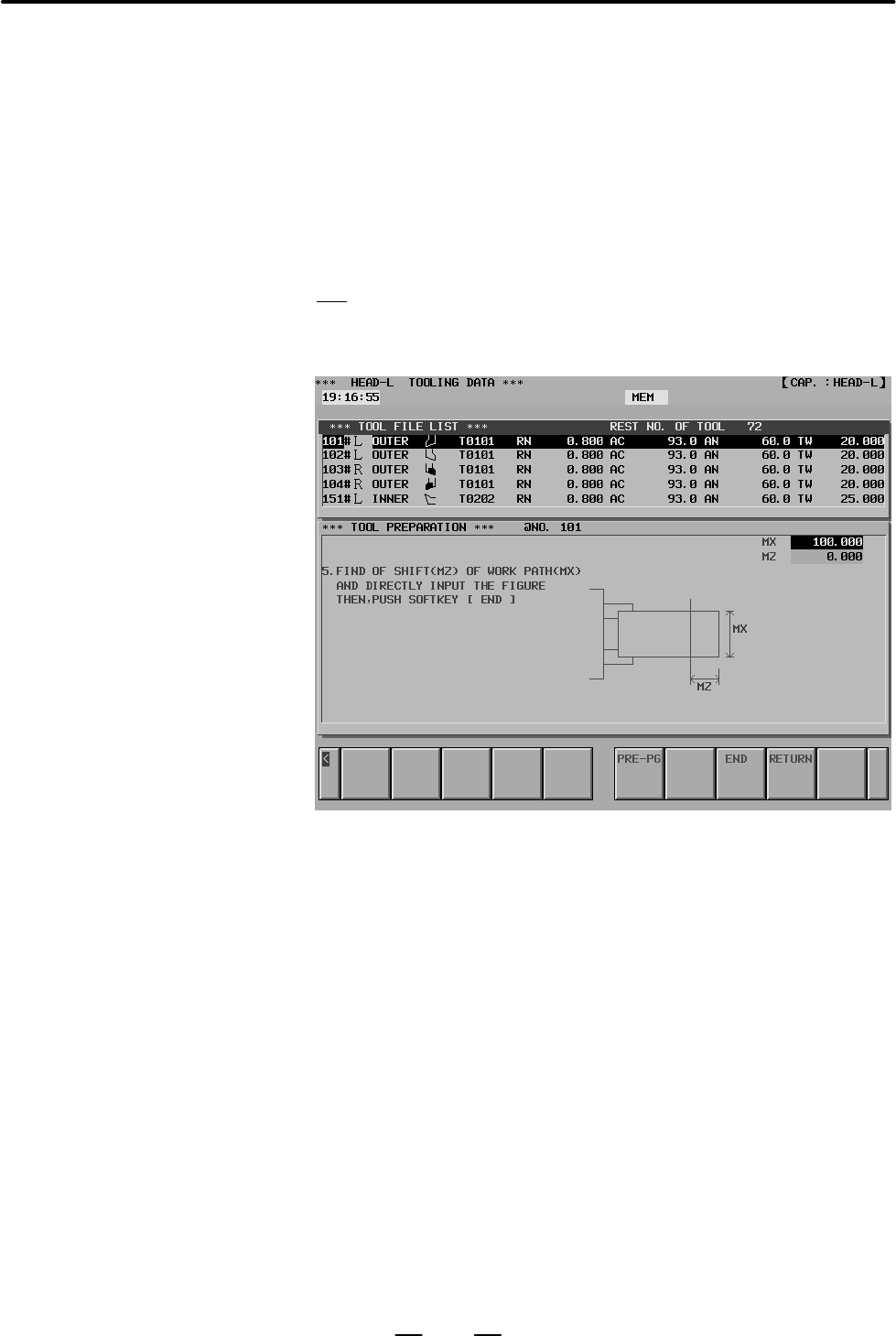

The screen for measuring the diameter of a workpiece appears after

the screen for measuring the compensation along the X–axis.

Measure the diameter of the workpiece using a tool such as vernier

calipers, then enter the reading into the MX field (workpiece

diameter) on the screen.

Operation)

When the diameter of a workpiece is 100 mm

100

INPUT

[END]

If necessary, enter the following data in the MZ field (shift along the

Z–axis) before pressing the [END] soft key.

D When the program reference position is on the end face of a workpiece

To shift the end face of the workpiece, enter the desired shift.

D When the program reference position is on the end face of a chuck

Enter the length of the workpiece.

When [END] is pressed, a tool geometry compensation value calculation

is performed, the result of the calculation being written into the tool

geometry compensation field. This tool geometry compensation value is

the same as that for the NC.

At the same time, 0 is written into the wear compensation field for the

compensation number.

The original tooling data screen is redisplayed.
