SUPER CAPi T Operators manual Page 77

Operators manual

Page of 829

/ 829

6. CREATING MACHINING PROGRAMS

B–63284EN/03

OPERATION

NOTE

Enter the coordinates of necessary positions on both the

outer and inner surfaces. Enter coordinates of three points

in a line. When the cursor moves to the next line, new data

items for three points appear.

After data is entered for the necessary points on the outer

surface, press the [FIGURE END] soft key to display the

data items for points on the inner surface.

After data is entered to points on the inner surface, press the

[FIGURE END] soft key.

Pressing the [DELETE] soft key deletes all the data which

is on the line the cursor points out.

Pressing the [INSERT] soft key creates a new data entry line

for three points immediately after the line the cursor points

out.

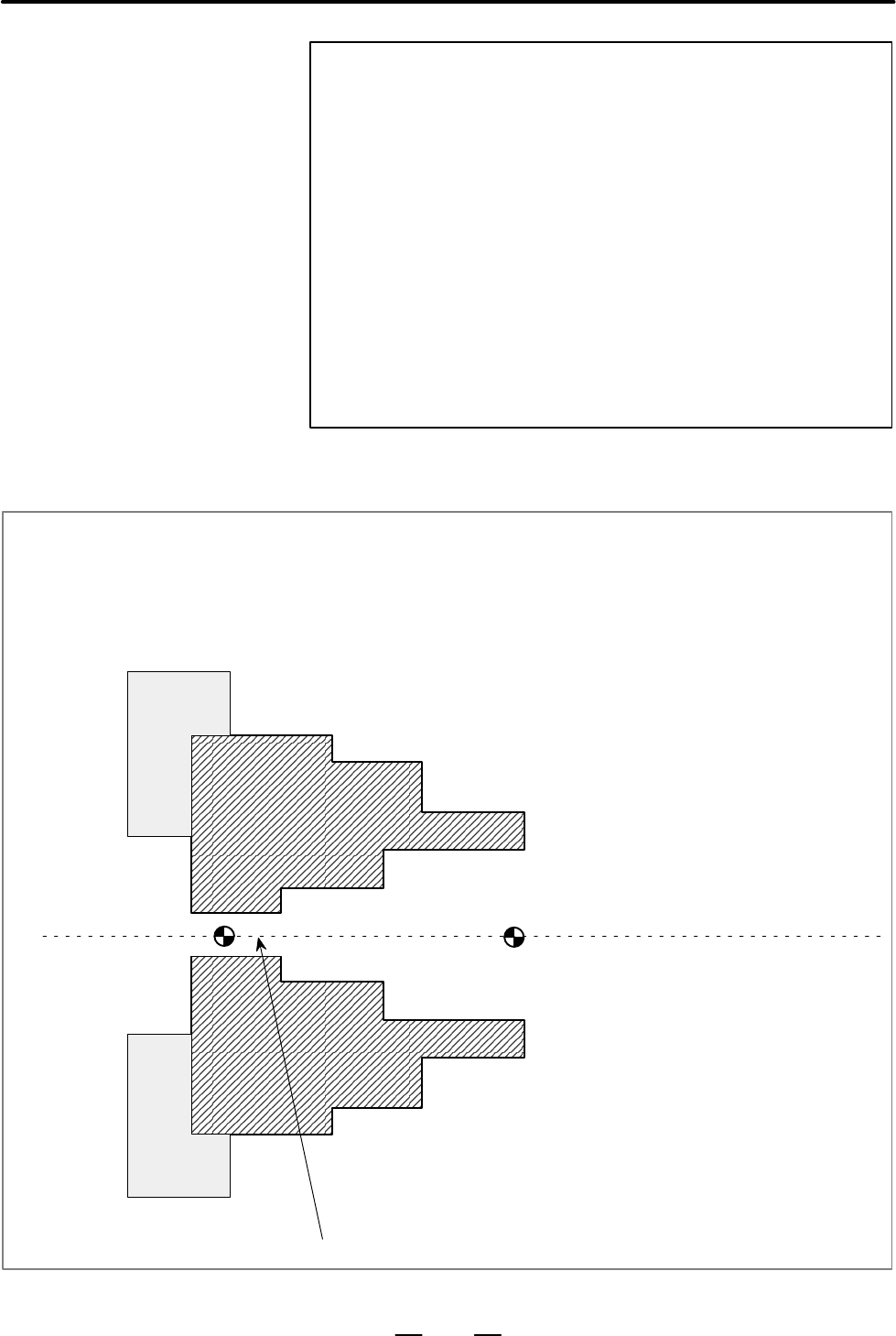

Example) Cross–section of molding material

Points on the outer surface

Coordinates of point (1) = (X1, Z1)

Coordinates of point (2) = (X2, Z2)

Coordinates of point (3) = (X3, Z3)

Coordinates of point (4) = (X4, Z4)

Coordinates of point (5) = (X5, Z5)

Coordinates of point (6) = (X6, Z6)

Points on the inner surface

Coordinates of point (7) = (X1, Z1)

Coordinates of point (8) = (X2, Z2)

Coordinates of point (9) = (X3, Z3)

Coordinates of point (10) = (X4, Z4)

Coordinates of point (11) = (X5, Z5)

Coordinates of point (12) = (X6, Z6)

(2)

Program reference position

(on the edge of a workpiece)

Program reference position (on the edge of the chuck)

Figure for checking

the outside claw

(1)

(4)

(3)

(5)

(6)

(7)

(8)

(11) (12)

(10)

(9)
