SUPER CAPi T Operators manual Page 578

Operators manual

Page of 829

/ 829

B–63284EN/03

2. FUNCTIONS RELATED

TO MACHINING

ADDITIONAL FUNCTIONS OF SERIES

BH0M/BH1D/BH2D, BH1E/BH2E/BH3E,

AND BH1F/BH2F/BH3F

559

NOTE

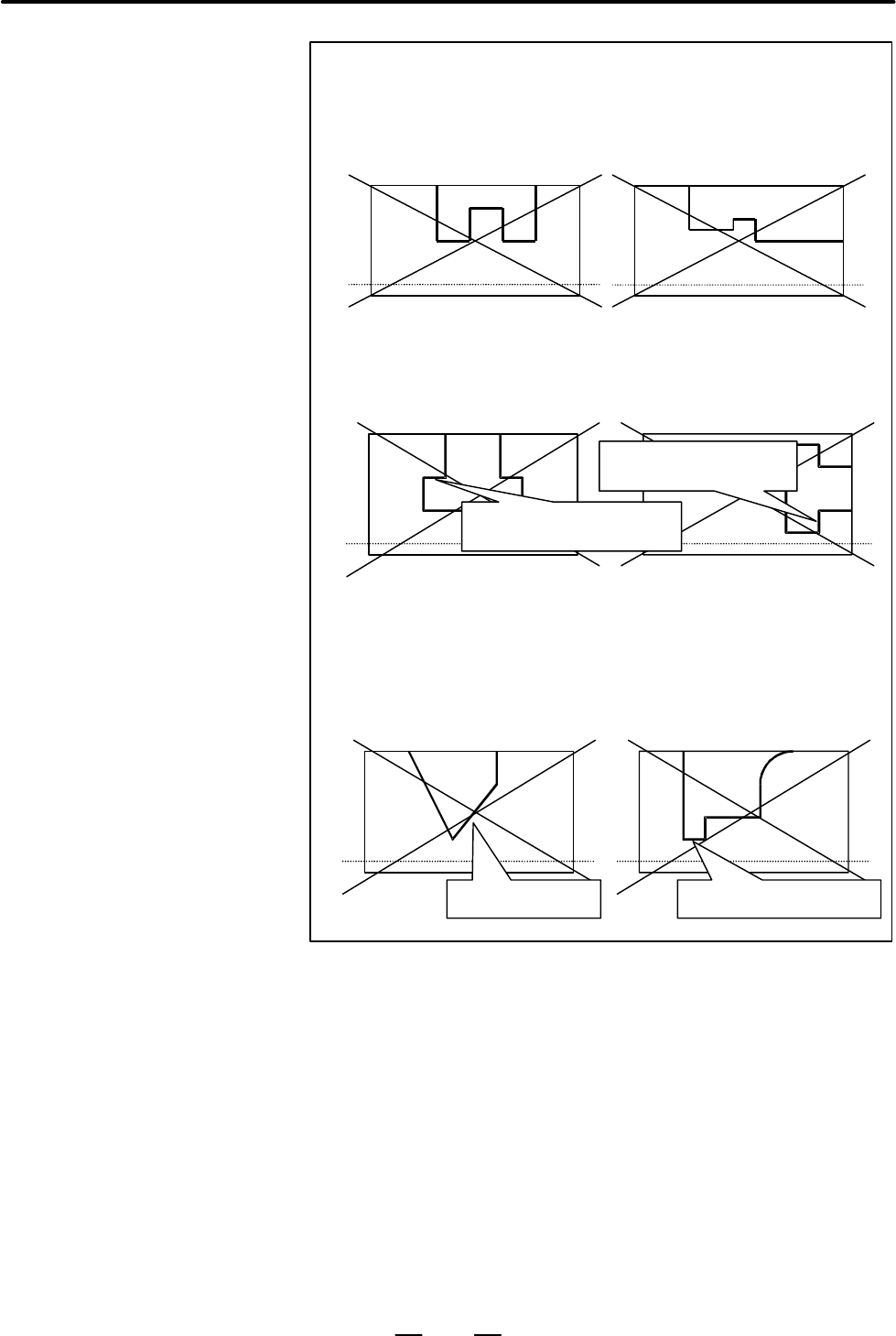

The following groove cannot be machined. And P/S alarm

3002 occurs.

1 The figure with two concave parts or more cannot be

machined.

2 In outer and inner part, the figure, which is not monotonous

decrease along Z–axis, cannot be machined. In end face

part, the figure, which is not monotonous increase along

X–axis, cannot be machined.

3 In outer and inner part, when the figure of the groove bottom

is not horizontal, it cannot be machined. In end face part,

when the figure of the groove bottom is not vertical, it cannot

be machined.

(If the figure of the groove bottom is narrower than the value

of WIDTH in process data, it cannot be machined.)

Outer End face

Not monotonous decrease

along Z–axis

Not monotonous increase

along X–axis

Bottom is narrow.Not horizontal
