SUPER CAPi T Operators manual Page 524

Operators manual

Page of 829

/ 829

B–63284EN/03

1. CREATING MACHINING

PROGRAMS FOR TWO–PATH

4–AXIS (X1, Z1, X2, AND Z2) LATHES

EXAMPLES OF CREATING

PROGRAMS

505

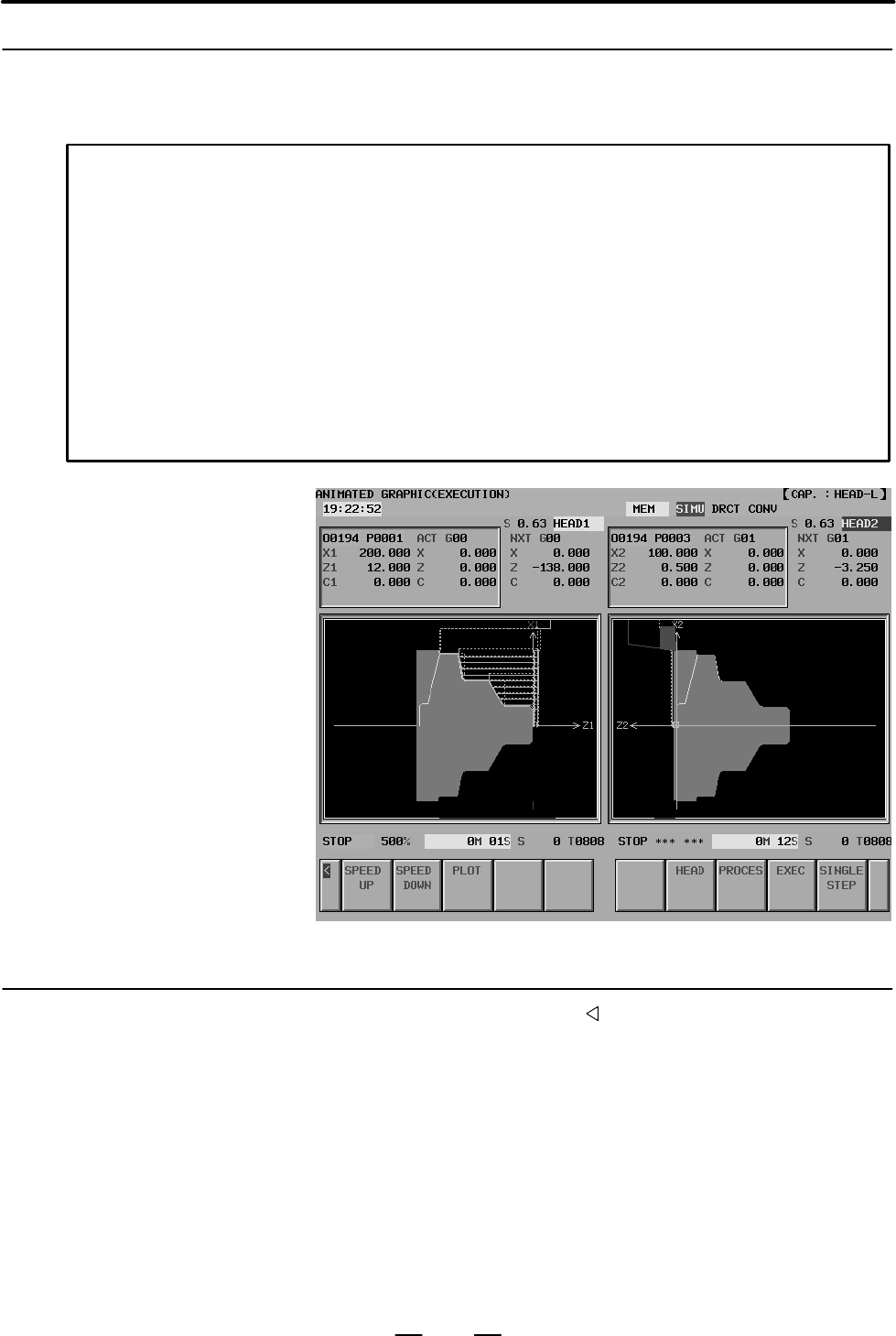

A program can be checked by running it for animated simulation using

the procedure shown below:

On the main menu, press:

[3] (Machining simulation)

A list of machining programs is displayed for simulation purposes.

Place the cursor on the program you want to run for animated

simulation, then specify:

[ANIMA + RT.CH] (Animated simulation with tool trajectory)

After making sure that the animated simulation appears on the screen,

press:

[EXEC] (Starts animated simulation.)

To start animated simulation at the very beginning, press:

[HEAD]

[EXEC]

Pressing the leftmost soft key [ ] (super return) on the animated

simulation screen redisplays the main menu.

1.3.8

Animated Simulation

1.3.9

Returning to the Main
