6. CREATING MACHINING PROGRAMS

B–63284EN/03

OPERATION

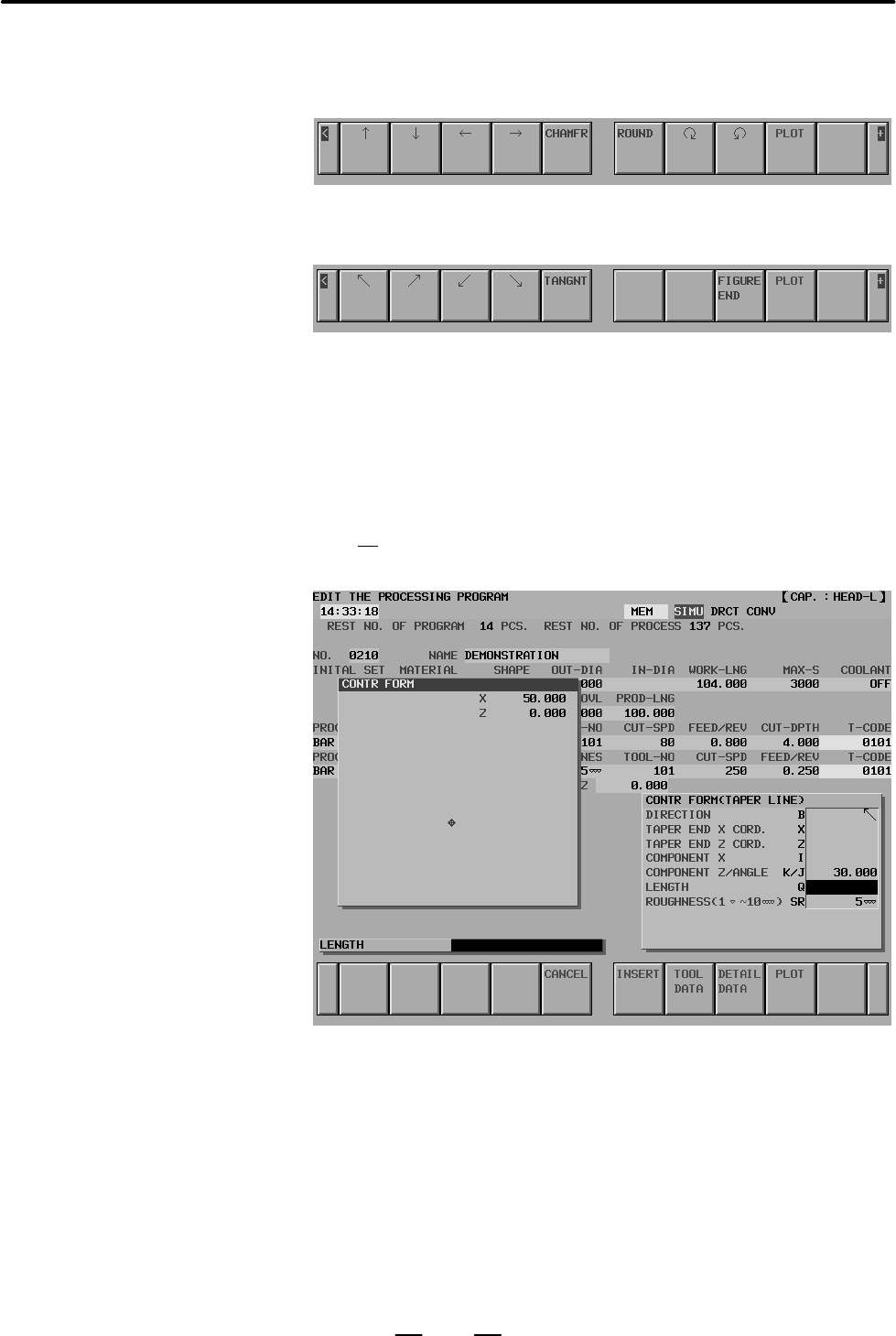

(2) Selecting a figure

A menu of figures appears on the lower part of the screen. Select a

figure by pressing the corresponding soft key.

Pressing [+] displays a figure menu other than the menu shown

above.

(3) Entering contour data

When a figure has been selected, the window guidance for entering

contour figure data appears as shown below. Enter the data that is

designated on the drawing.

Position the cursor at the item for specifying the angle, then enter the

following:

INPUT (angle of the taper line)

[INSERT]

(4) Displaying the figure data screen

When contour data is entered as mentioned above, the intersections

and other necessary data are calculated automatically and displayed

on the screen.

Repeat the above operation until all the data necessary for the

process is entered. Then press the [FIGURE END] soft key.
