1. COMPLEX LATHE

APPLICATION

B–63284EN/03

ADDITIONAL FUNCTIONS OF SERIES

BH0M/BH1D/BH2D, BH1E/BH2E/BH3E,

AND BH1F/BH2F/BH3F

542

When Complex Lathe Application is used, the combination of a turret and

a spindle used for machining is selected with the software key.

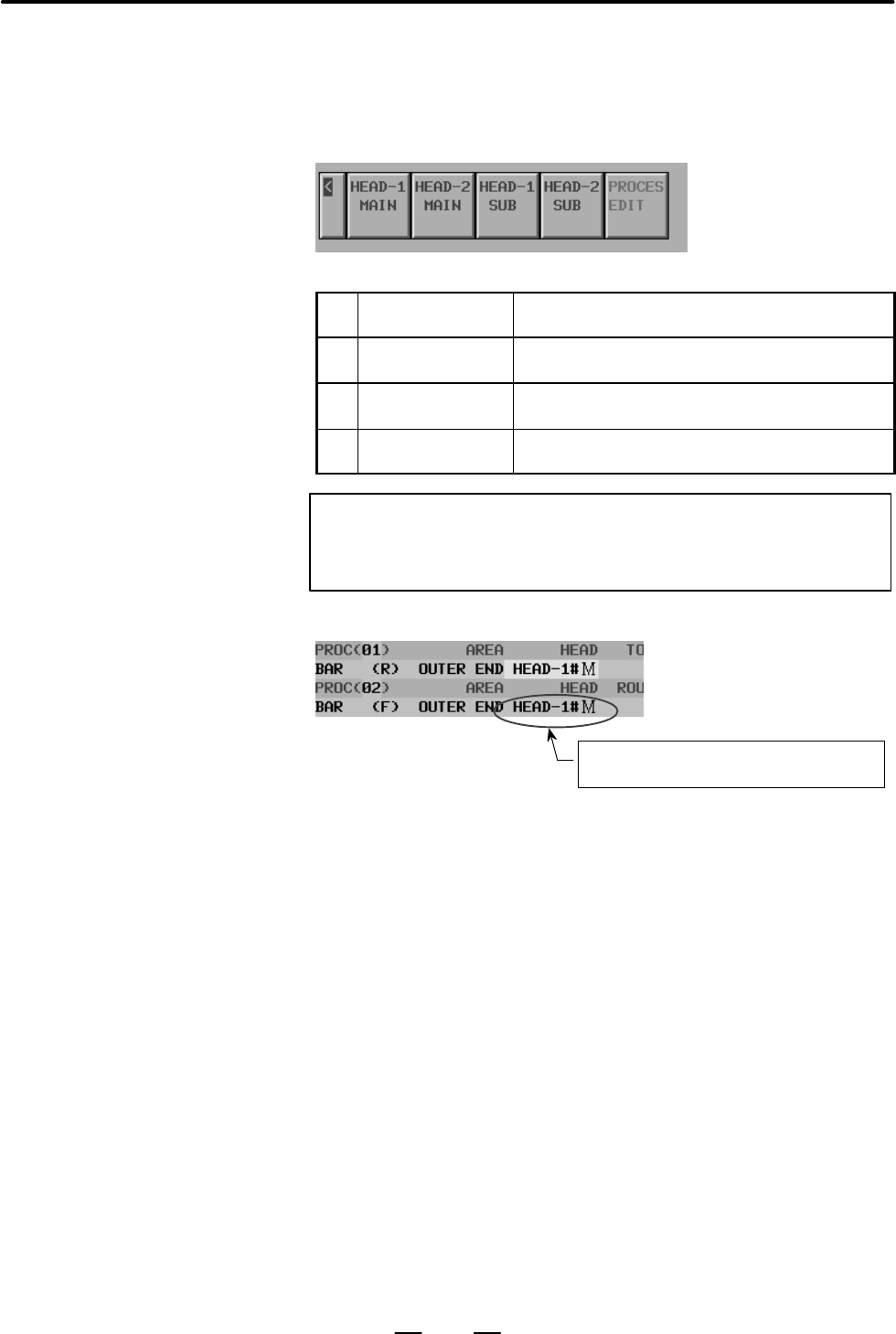

The following software keys are displayed when there is a cursor in the

item “Unit” of the process data.

1 HEAD–1+MAIN The upper turret machines the workpiece on Main–

spindle.

2 HEAD–2+MAIN The lower turret machines the workpiece on Main–

spindle.

3 HEAD–1+SUB The upper turret machines the workpiece on Sub–

spindle.

4 HEAD–2+SUB The lower turret machines the workpiece on Sub–

spindle.

NOTE

The setting of parameters decides the name of software

keys.

The combination of a turret and a spindle is

displayed on the item “HEAD”.
