SUPER CAPi T Operators manual Page 88

Operators manual

Page of 829

/ 829

B–63284EN/03

6. CREATING MACHINING PROGRAMSOPERATION

Based on an existing machining program, a new machining program can

be created with some modifications to the existing program.

Press the [2] soft key on the main menu to display the registered–program

directory screen

On the registered program directory screen, used for editing a machining

program, enter the number of the machining program to be copied.

Alternatively, position the cursor to the program number and press the

[COPY] key.

Before copying the program, be sure to check that the memory protect

switch on the machine operator’s panel is set to the release position.

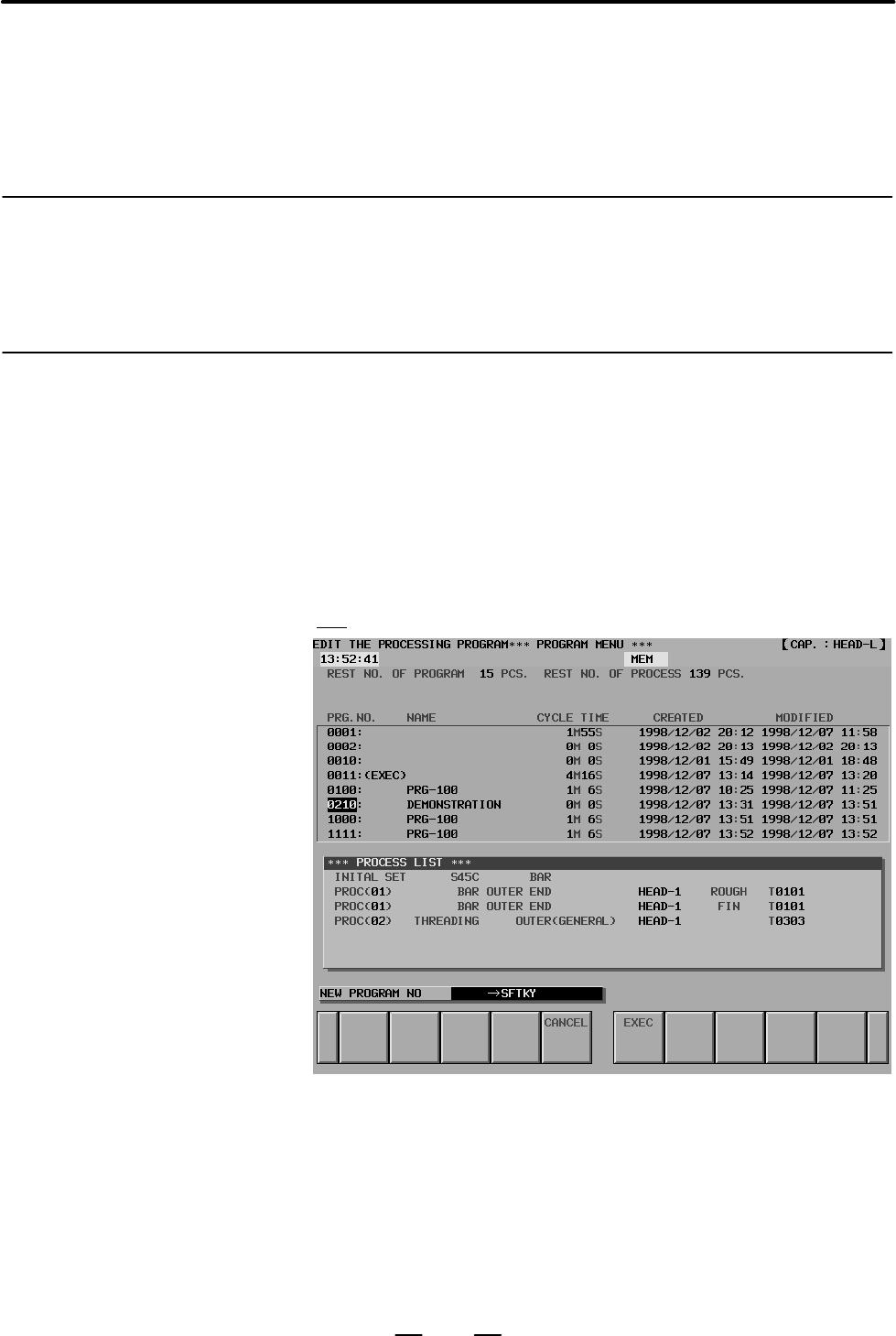

Copying the machining program with program number 210

210

[COPY]

Enter a program number for a program to be created. Press the [EXEC]

soft key. The new machining program is then created.

To stop copying, press the [CANCEL] key.

The initial setting screen for the new machining program appears. Modify

the machining program in the same way as editing machining programs

explained in Section 6.8.

6.8

CREATING A NEW

PROGRAM USING

OTHER PROGRAMS

6.8.1

Registered–program

Directory Screen for

Editing

6.8.2

Copying a Program

Example)
