SUPER CAPi T Operators manual Page 628

Operators manual

Page of 829

/ 829

B–63284EN/03

11. CONTOUR GROOVING

FUNCTION WITH A

BUTTON TOOL

ADDITIONAL FUNCTIONS OF SERIES

BH0M/BH1D/BH2D, BH1E/BH2E/BH3E,

AND BH1F/BH2F/BH3F

609

Enter figure data in the same way as for contour grooving with a grooving

tool or multi–function tool. In contour grooving with a button tool, the

following figures can also be entered:

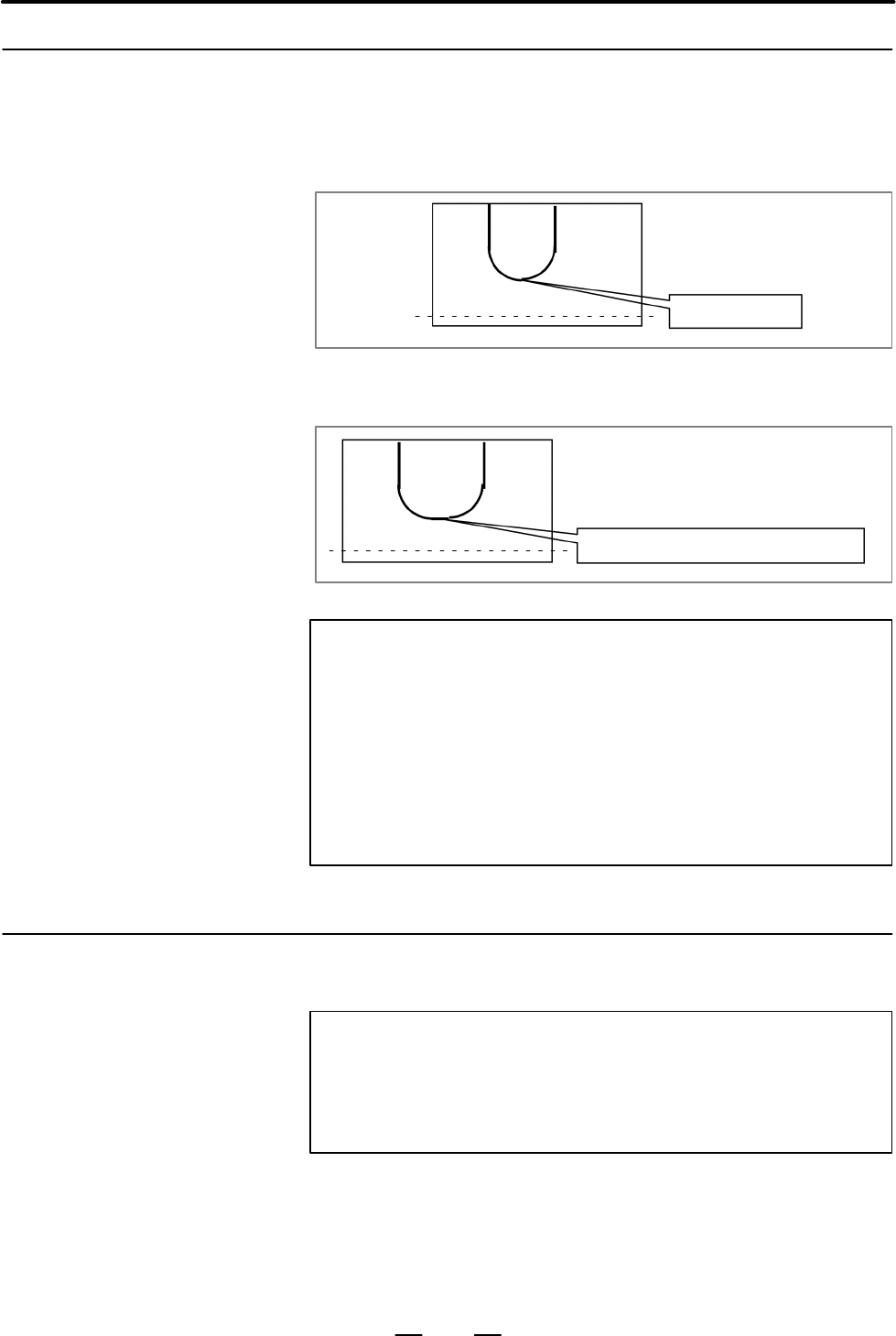

D When the figure of the groove bottom is circular

The bottom is

circular.

D When the figure of the groove bottom is smaller than the tool width

The bottom is horizontal but short.

NOTE

1 The restrictions imposed on contour grooving with a

grooving tool or multi–function tool except above also apply

to contour grooving with a button tool.

2 Grooves with a concave figure that is smaller than the

tool–nose radius of the button tool used cannot be

machined. In this case, P/S alarm 3002 is issued.

3 In corners of which figure is not round, an uncut portion for

the amount of the radius of the tool nose is left.

Machining is performed in the same way as contour grooving with a

grooving tool or multi–function tool.

NOTE

For high–speed rough machining, if a large stepping

amount is specified, there may be an uncut portion left on

the wall depending on the radius of the tool nose of the

button tool. In such a case, set a smaller stepping amount.

11.2.2

Figure Data

11.2.3

Machining Movement
