B–63284EN/03

8. EDITING MACHINING PROGRAMSOPERATION

101

The contour data of bar machining can be changed by the data entered for

automatic figure calculating.

By performing this operation, cross and contact points of the changed

contour block and the preceding and subsequent figure blocks are

recomputed to create new contour data.

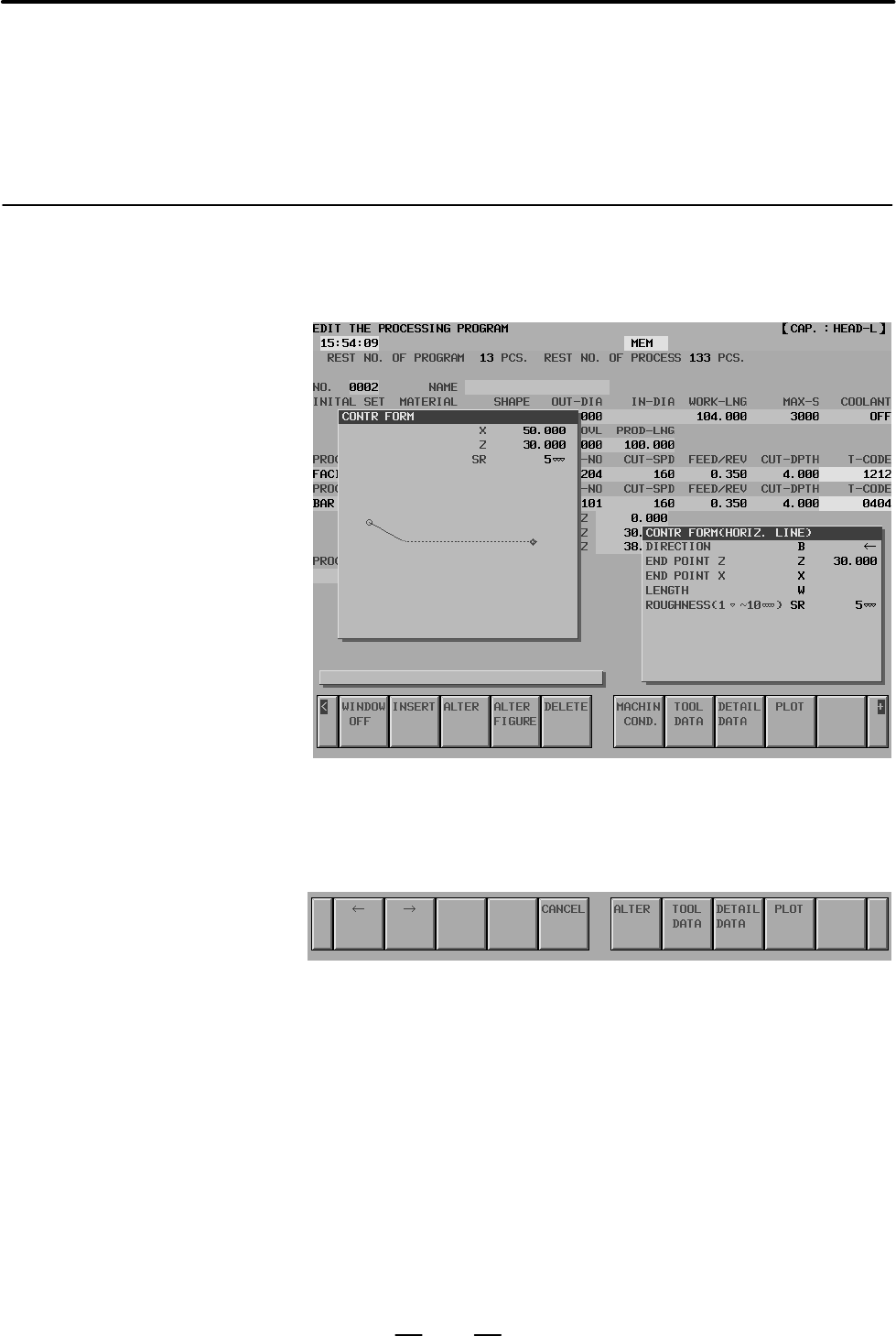

(1) Using a cursor key, move the cursor to the figure block to be

changed. The entered data is displayed in the window guidance as

shown below.

(2) Press the [ALTER] soft key shown above. If the soft keys are not

displayed, press the rightmost [+] soft key for several times.

(3) The color of the frame of the window guidance changes to yellow

and the following soft keys are displayed.

If a cursor key is pressed in this state, a yellow inverted cursor moves in

the window guidance.

8.4

CHANGING PART OF

THE CONTOUR DATA

8.4.1

Changing Entered

Figure Data
