B–63284EN/03

1. THREE–PATH COMPLEX

LATHE FUNCTION

ADDITIONAL FUNCTIONS OF SERIES

BH1E/BH2E/BH3E AND BH1F/BH2F/BH3F

632

Tool post 1 is indicated as the upper turret, and tool posts 2 and 3 are

indicated as the lower turrets.

Tool posts 2 and 3 cannot be displayed at the same time.

To switch between tool posts 2 and 3 on the display, use the G10 P90073

command.

Specifying the G10 P90073 command determines which machining

operation, the machining operation in tool post 2 or the machining

operation in tool post 3, is to be displayed.

D For lathes with tool post 1 (the first path) located on the upper side

which allows main–spindle machining only, tool post 2 (the second

path) on the upper side which allows sub–spindle machining only, and

tool post 3 (the third path) on the lower side which allows

main–spindle and sub–spindle machining (when parameter No. 27124

is set to 2)

Tool posts 1 and 2 are indicated as the upper turrets, and tool post 3 is

indicated as the lower turret.

Tool posts 1 and 2 cannot be displayed at the same time.

To switch between tool posts 1 and 2 on the display, use the G10 P90073

and G10 P90074 commands.

Specifying the G10 P90073 and G10 P90074 commands determines

which machining operation, the machining operation in tool post 1 or the

machining operation in tool post 2, is to be displayed.

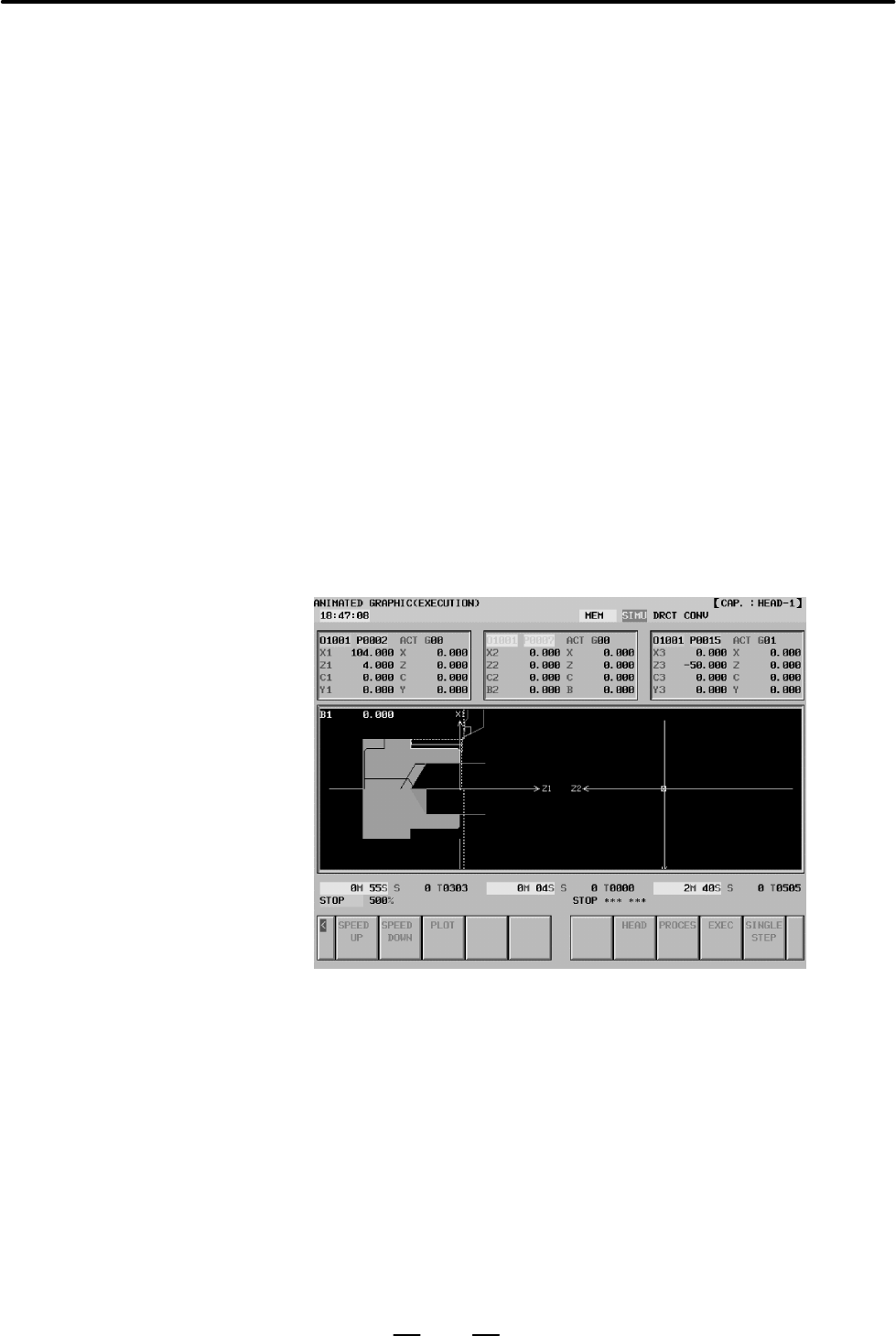

D For information about operation and the operation method, refer to

Section 7.2, “CHECKING MACHINING PROGRAMS USING THE

SIMULATION” in Part II, “OPERATION” in “FANUC Super CAPi

T Operator’s Manual.”
