Two methods are available to display the process directory screen.
(1) Displaying the process directory screen from the registered–
program directory screen
On the registered–program directory screen for editing, enter the desired
program number using numeric keys. Alternatively, move the cursor to
the program number. Then press the [PROCES EDIT] soft key.
(2) Displaying the process directory screen from the screen of the
machining program
When the contents of the machining program are displayed, press the
[PROCES EDIT] soft key. The process editing screen of the machining
program is displayed.

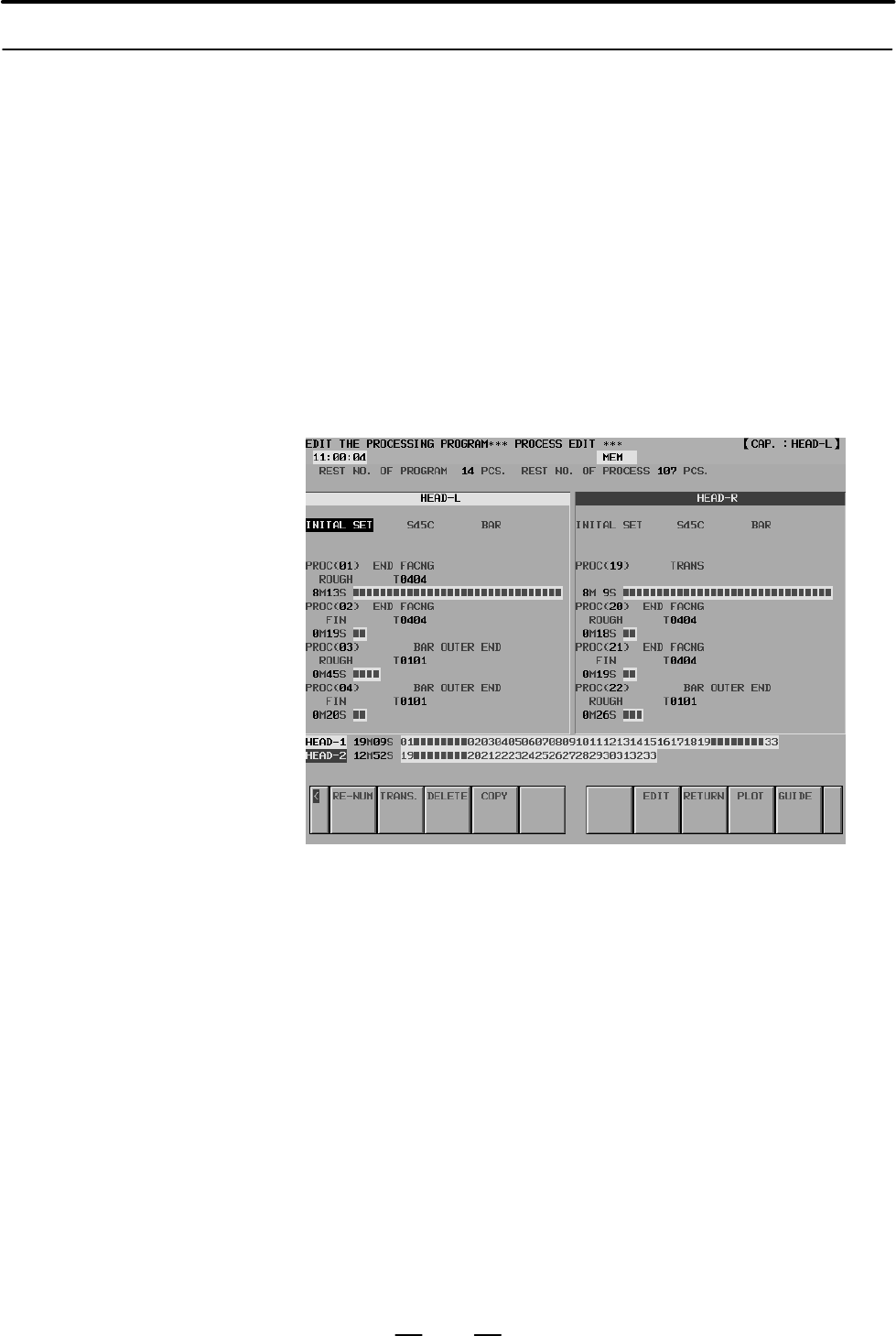

Process editing screen of a two–path lathe (Type A)
On the process editing screen, the machining time of each process is
indicated in minutes and seconds and also in a bar chart (only type A).
The bar charts of the rough machining, finish machining, and chamfering
are displayed in green, purple, and blue respectively.
The ratio of the machining time of each process to that of the entire
machining program is indicated in a bar chart at the bottom of the screen.
(only type A)
