B–63284EN/03

1. THREE–PATH COMPLEX

LATHE FUNCTION

ADDITIONAL FUNCTIONS OF SERIES

BH1E/BH2E/BH3E AND BH1F/BH2F/BH3F

638

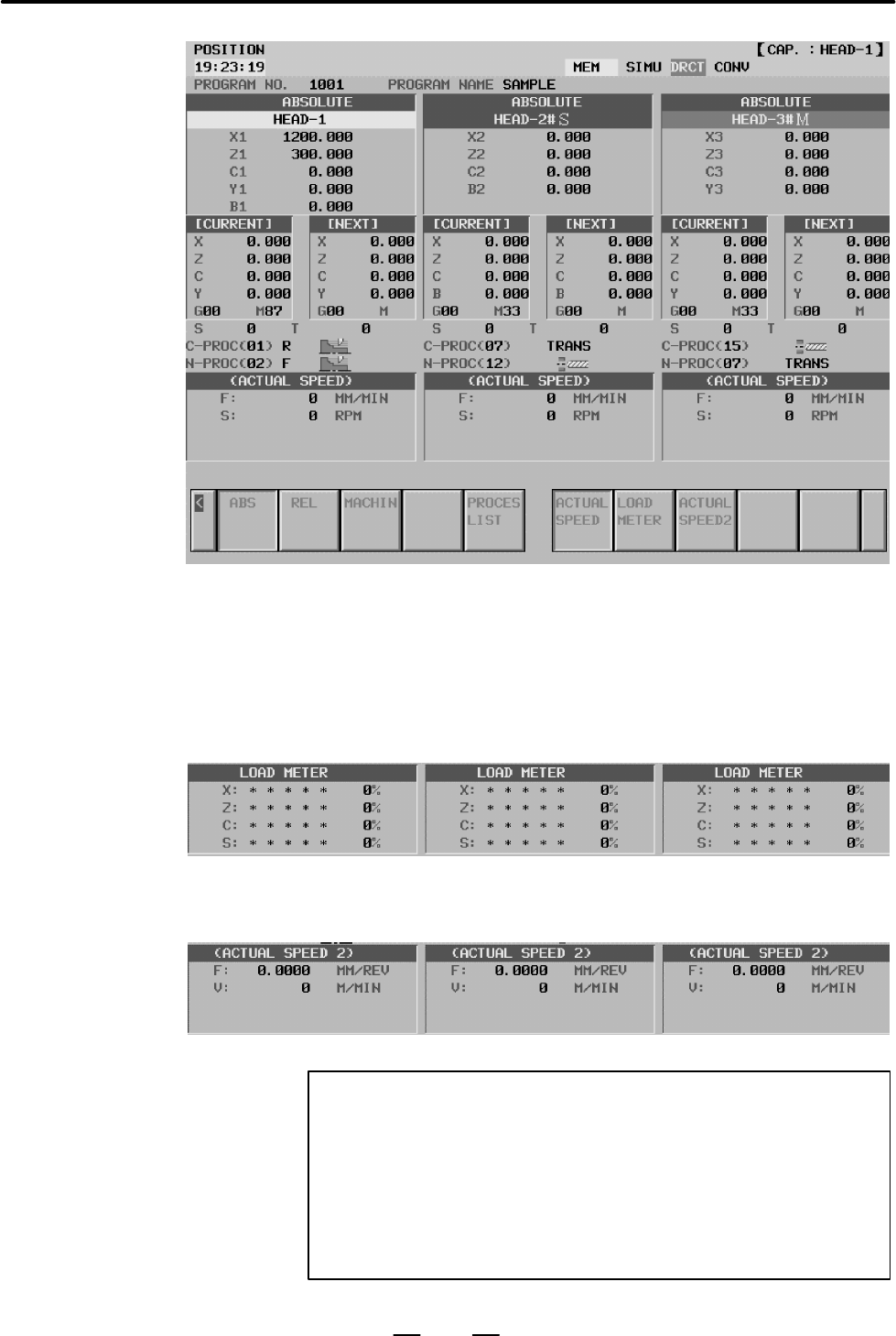

Pressing [CHANGE DISPLAY] changes the display from the actual

speed indication to load meter to actual speed 2 indication to actual speed

indication. Note that actual speed 2 can be displayed only when an

appropriate parameter setting is made.

Load meter indication)

Actual speed 2 indication)

NOTE

1 When one path or two paths are used, the same screen as

the conventional screen is displayed.

2 Coordinate axes are displayed according to the setting of bit

6 (AXD) of parameter No. 9762.

3 Up to five coordinate axes can be displayed when three

paths are used. When two paths or one path is used, up to

four coordinate axes can be displayed.
