B-63874EN-1/02 2.MEASUREMENT CYCLE

- 99 -

- HEIGHT OF MEAS. PT.

Enter the height of a measurement point in the Z-axis direction.

Enter a numeric value.

- APROCH DISTANCE

Specify the move distance from the approach point to the

measurement point in the Z-axis direction.

Enter a numeric value.

- MOVING MEAS. SPEED

Enter a feedrate for measurement.

Enter a numeric value.

- MEASUREMENT POINT

Specify the number of measurement points.

Enter a numeric value (1 to 4).

When no value is entered, 4 (four-point measurement) is assumed.

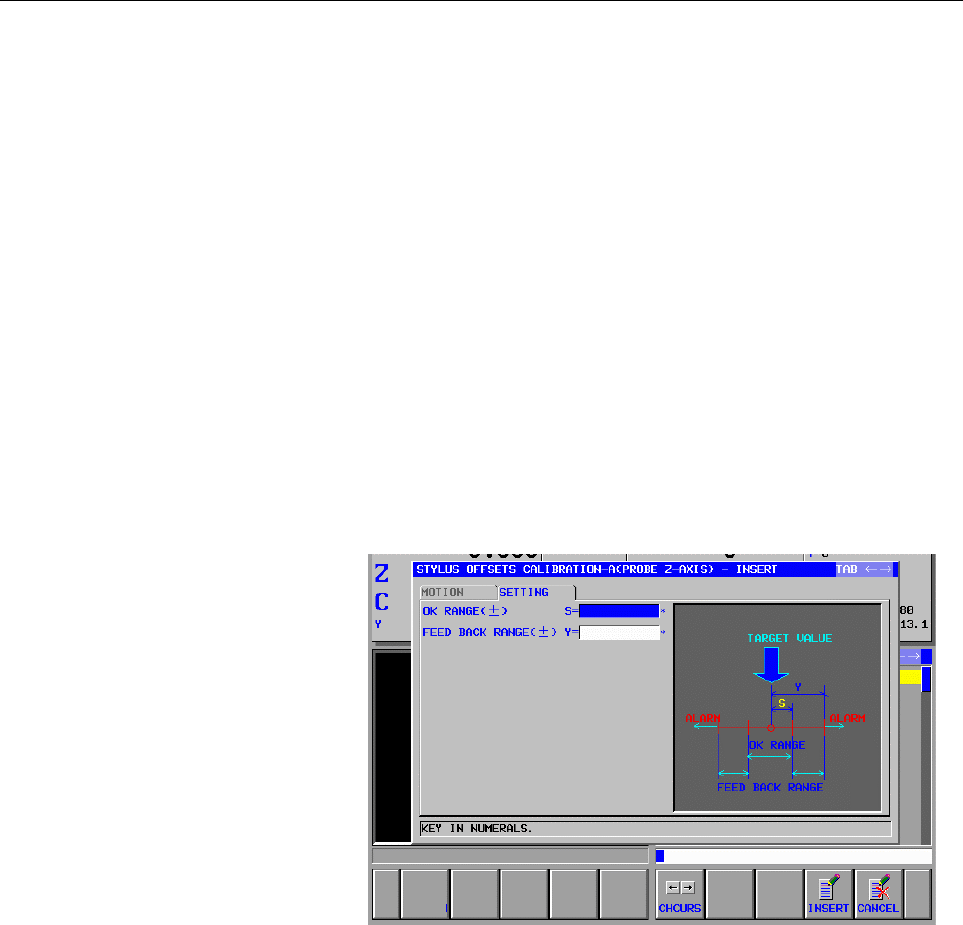

Setting screen

- OK RANGE (±

±±

±)

Specify an allowable range of offsets obtained from measurement.

If an offset obtained as the result of measurement is within this range,

the absence of offsets is assumed, and the offset at the setting

destination is cleared to 0.

Enter a numeric value.
