B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 27 -

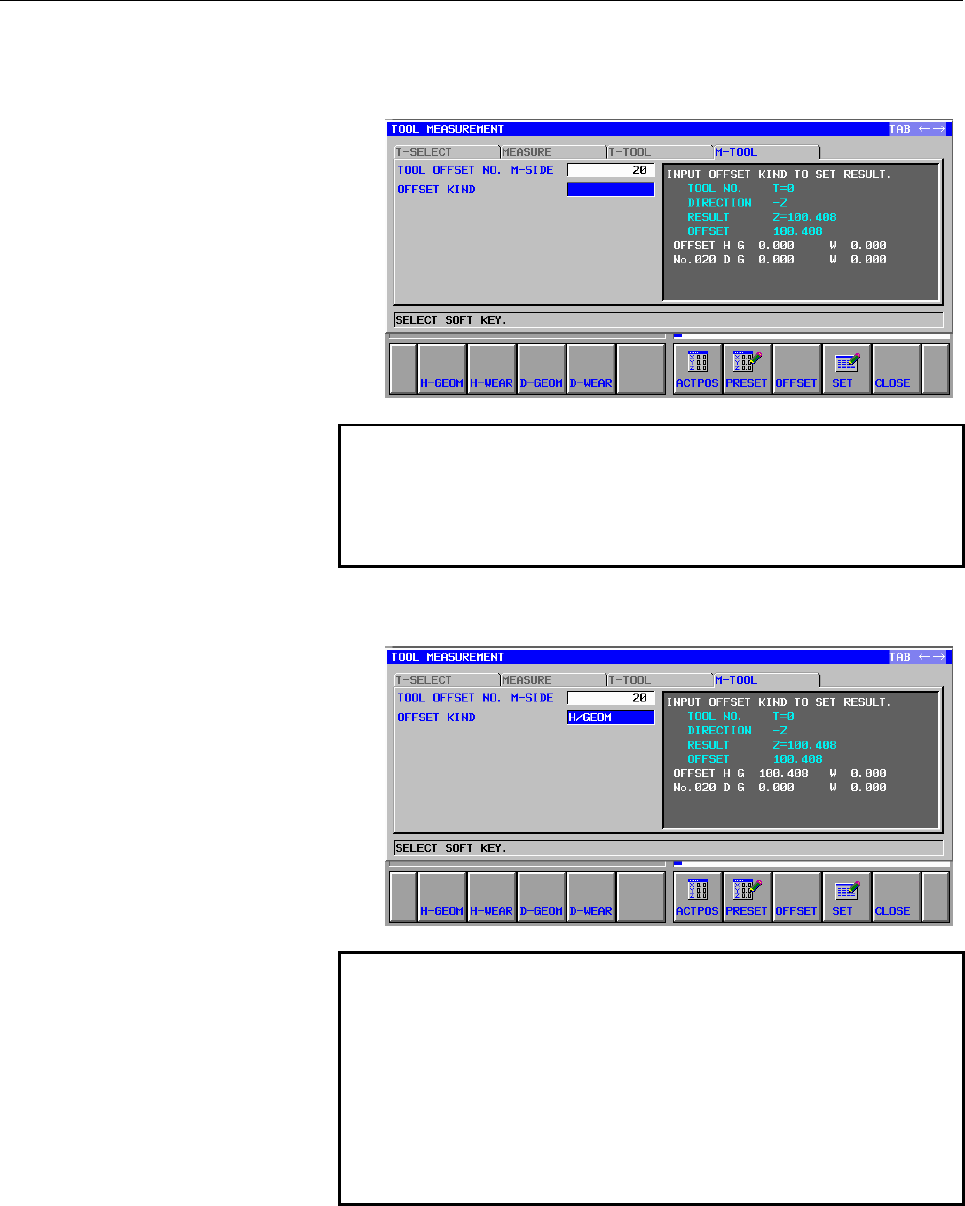

<19>In "OFFSET KIND," specify an offset value for which the

measurement result is to be set.

NOTE

The "tool offset memory B" and "tool offset memory

C" functions are options.

(The "tool offset memory B" option is unavailable

on the NC for complex machining.)

<20>After entering the necessary data, press the [SET] soft key. The

measurement result is set as the tool offset value.

NOTE

When the "tool geometry/wear offset" function is

available, the tool wear offset is specified as 0 if the

offset obtained in measurement is set as the tool

geometry offset. If the offset obtained in

measurement is to be set as the tool wear offset,

the difference between the measurement result and

the original tool geometry offset value is set as the

tool wear offset value.

<21>If you want to select another tool, press the [←] cursor key to

return to the "T-SELECT" screen.
