B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 71 -

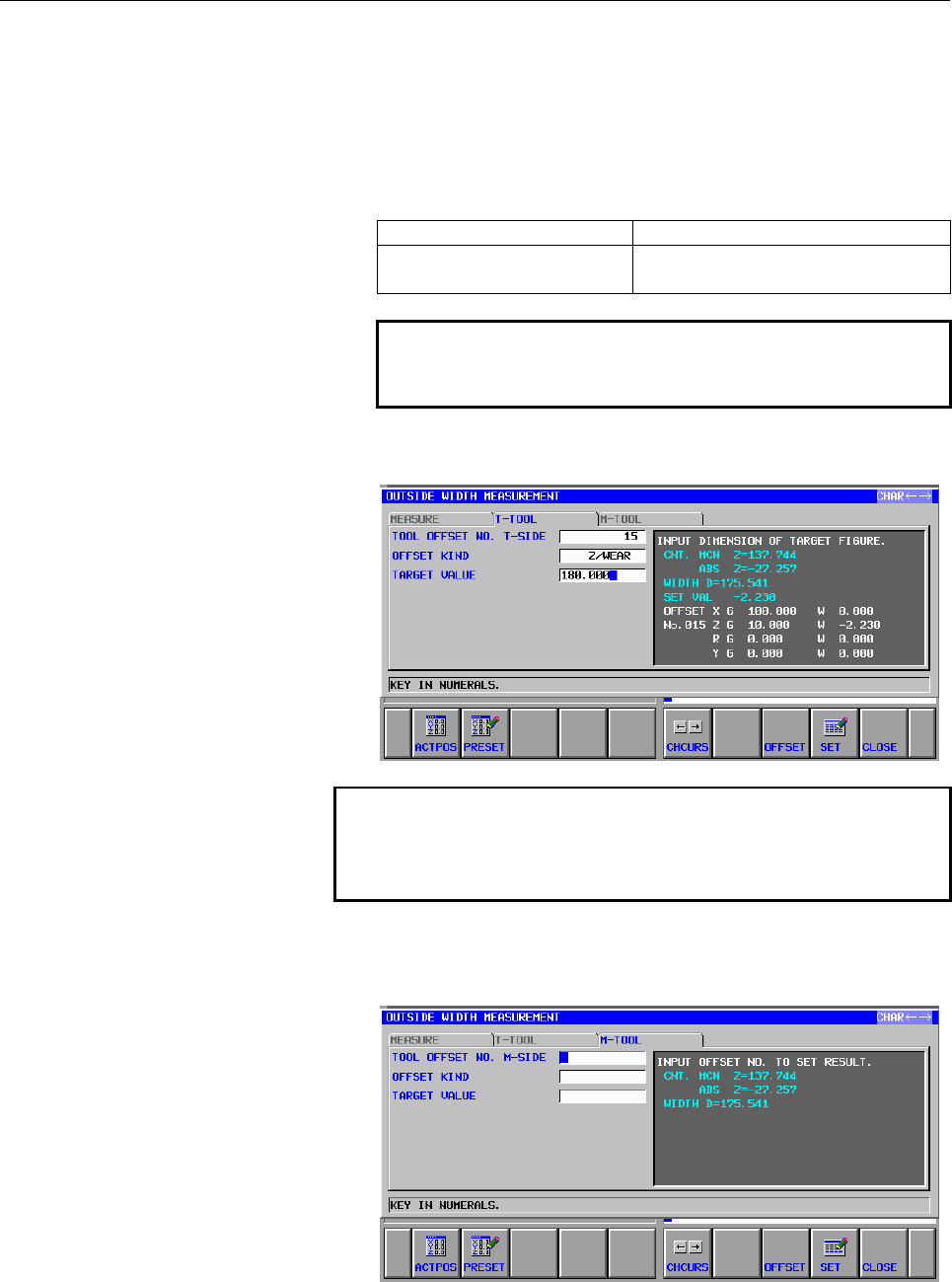

<6> In "TARGET VALUE," specify the desired post-machining

groove width value. After the value is entered, the value

obtained by multiplying a difference between the target value

and the measurement result by the offset value is displayed as

the setting value.

(How to calculate the setting value)

The setting value is calculated as follows:

Measurement direction Setting value

X, Y, Z

(Target value – measurement result)

÷ 2 × offset value

NOTE

The offset value is specified as a measurement

condition.

<7> After entering the necessary data, press the [SET] soft key. The

measurement result is set as the tool offset value.

NOTE

A value displayed as the setting value is added to

the offset value for the item specified in OFFSET

KIND.

<8> Pressing the [→] cursor key displays the "M-TOOL" screen, on

which it is possible to specify a milling tool offset number as the

item for which the offset value is to be set.
