B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 35 -

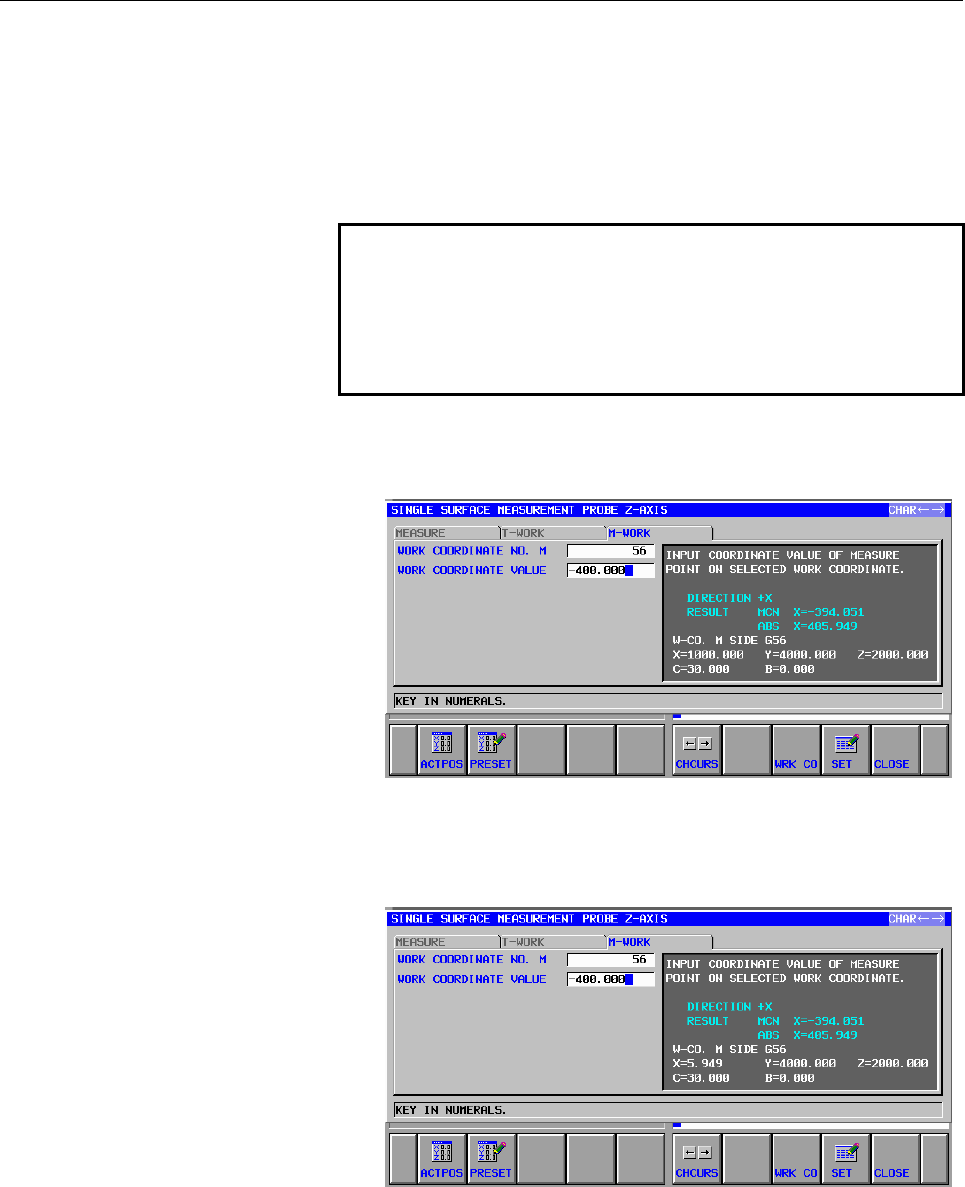

<14>The measurement result appears on the screen. If you want to

make measurements only, quit the operation here.

Set values in "WORK COORDINATE NO. M" and "WORK

COORDINATE VALUE."

<15>For explanations about what to set, see the specification of

operations on the "T-WORK" screen.

NOTE

The "additional 48 workpiece coordinate system

sets" and "additional 300 workpiece coordinate

system sets" functions are options. The "additional

300 workpiece coordinate system sets" option is

unavailable on the NC for complex machining.

<16>When a workpiece coordinate system is selected, the current

workpiece coordinate system data is displayed on the right

section of the screen.

<17>Press the [SET] soft key. A value calculated from the

measurement result and the value specified in "WORK

COORIDANTE VALUE" is set as the data for the selected

workpiece coordinate system.
