1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 66 -

1.5.3 OUTSIDE DIAMETER MEASUREMENT

Measurement procedure

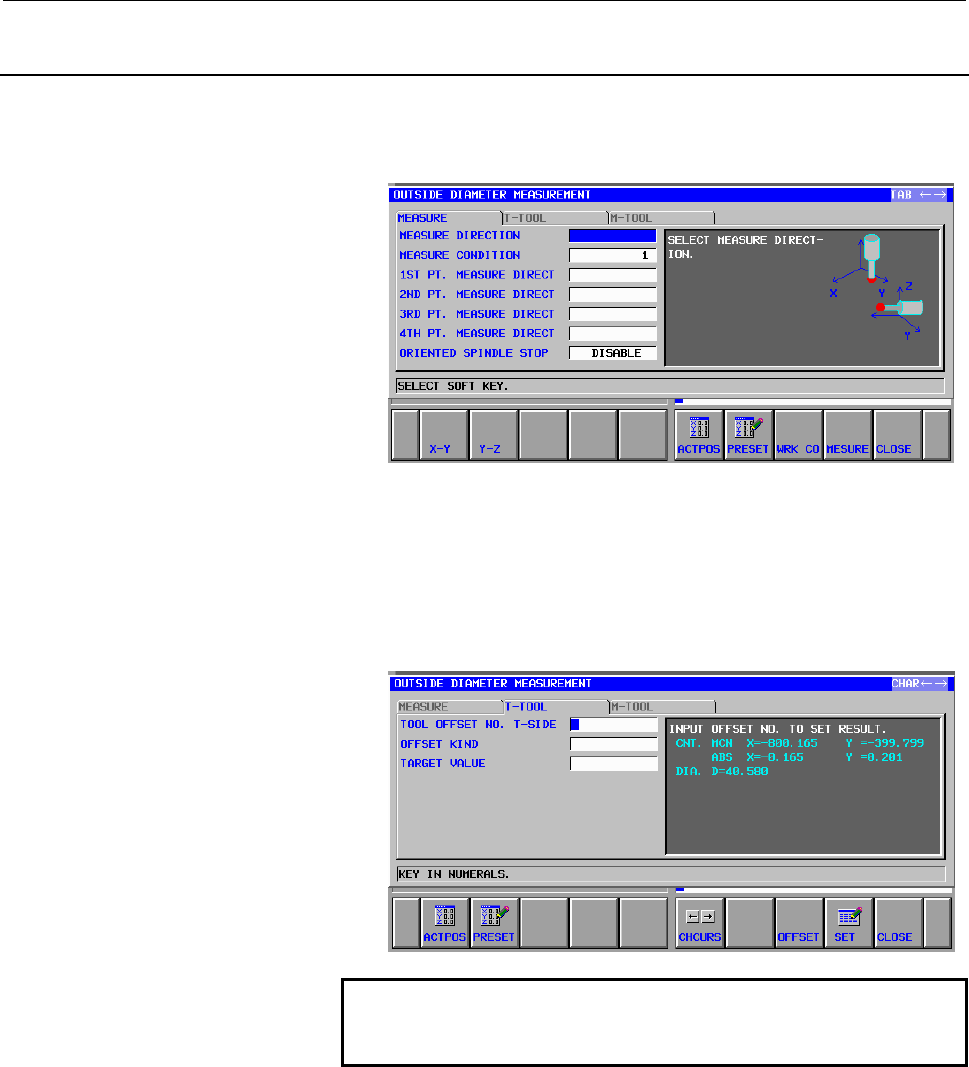

<1> Select "OUTSIDE DIAMETER MEASUREMENT" from the

post-machining inspection menu select screen.

The contents of this "MEASURE" screen are the same as for

"OUTSIDE DIAMETER MEASUREMENT" on the "WORK

SET" menu.

<2> Pressing the [→] cursor key displays the "T-TOOL" screen, on

which it is possible to specify a turning tool offset number as the

item for which the offset value is to be set.

NOTE

With the CNC for a machining center, the “T-TOOL”

screen is not displayed.

<3> Enter a turning tool offset number in "TOOL OFFSET NO. T-

SIDE."

When an offset number is entered, the current offset value for

the offset number is displayed on the right section of the screen.

<4> Select a value for "OFFSET KIND," using the soft keys.
