B-63874EN-1/02 2.MEASUREMENT CYCLE

- 199 -

2.6.5 Stylus Ball Center Offset Measurement-B

The offset between the center of the stylus ball and the center of the

spindle is measured.

NOTE

A reference workpiece needs to be accurately

placed on a table whose center position is known.

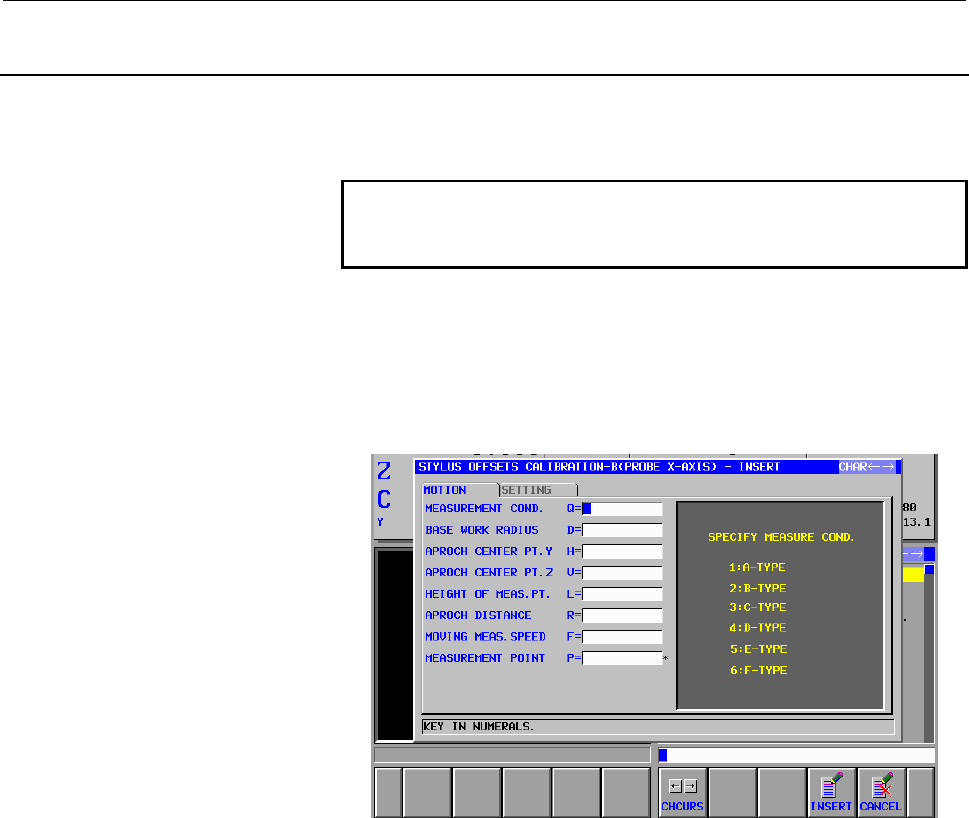

When you select "STYLUS OFFSETS CALIBRATION-B (PROBE

X-AXIS)" on the calibration menu selection screen of the

measurement cycle, the screen below appears.

A measurement is made on the YZ plane.

Measurement motion screen

- CENTER PT. Y

Enter the Y coordinate of the center of the reference workpiece.

Enter a numeric value.

- CENTER PT. Z

Enter the Z coordinate of the center of the reference workpiece.

Enter a numeric value.

- HEIGHT OF MEAS. PT.

Enter the height of a measurement point in the X-axis direction.

Enter a numeric value.

The descriptions of the other input items are the same as for "Stylus

Ball Center Offset Measurement-B" of "CALIBRATION (PROBE Z-

AXIS DIRECTION)".

Setting screen

The displayed items are the same as for "Stylus Ball Center Offset

Measurement-B" of "CALIBRATION (PROBE Z-AXIS

DIRECTION)".
