B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 33 -

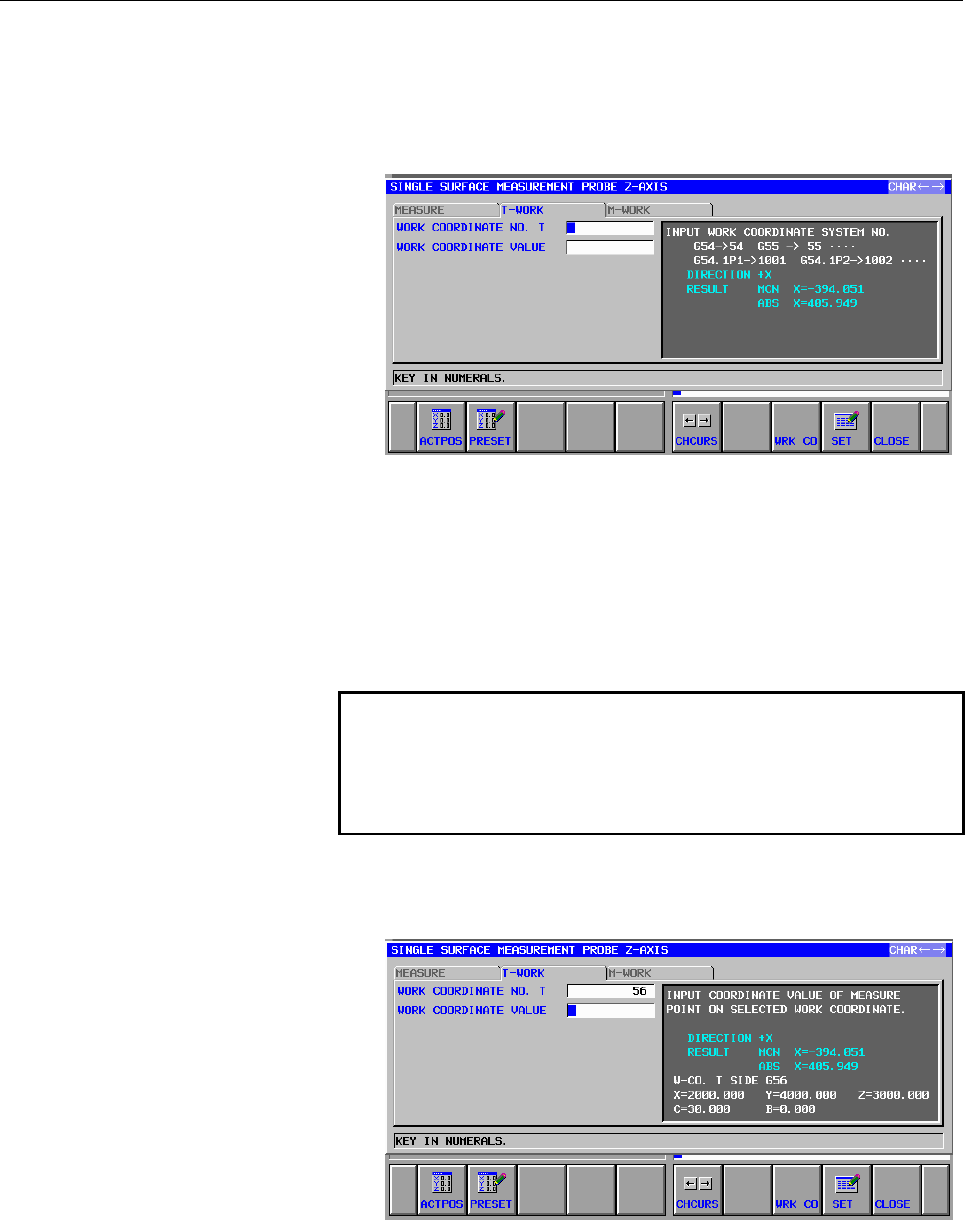

<9> In "WORK COORDINATE NO. T," specify a workpiece

coordinate system for which the measurement result is to be set.

(Descriptions of values to be entered)

For G54 → Key in '54'.

For G59→ Key in '59'.

If the coordinate system to be set is anything between G54 and

G59, key in the corresponding number between "54" and "59."

If the coordinate system to be set is one of the additional

workpiece coordinate sets, enter as follows:

(Descriptions of values to be entered)

For G54.1P1 → Key in '1001'.

For G54.1P48 → Key in '1048'.

NOTE

The "additional 48 workpiece coordinate system

sets" function is an option. This option is

unavailable in the turning section of the NC for

complex machining.

<10>When a workpiece coordinate system is selected, the current

workpiece coordinate system data is displayed on the right

section of the screen.
