Manual Guide i Operators manual Page 297

Operators manual

Page of 410

/ 410

B-63874EN-1/02 5.SUPPORTING TOOL MANAGEMENT

- 289 -

5.4 POST-MACHINING INSPECTION (AUTOMATIC

MEASUREMENT)

When a workpiece measurement result is fed back to a tool offset

value, specifying one of the following items enables the measurement

result to be fed back to the tool offset value.

- Offset number

- Tool number and offset type

- Group number (tool type number) and offset type

5.4.1 Selecting the MEASURE Screen

<1> When the machine is in the edit mode, press the [MESCYC] soft

key.

<2> Select the "MEASURE" tab.

<3> Select a post-machining inspection type.

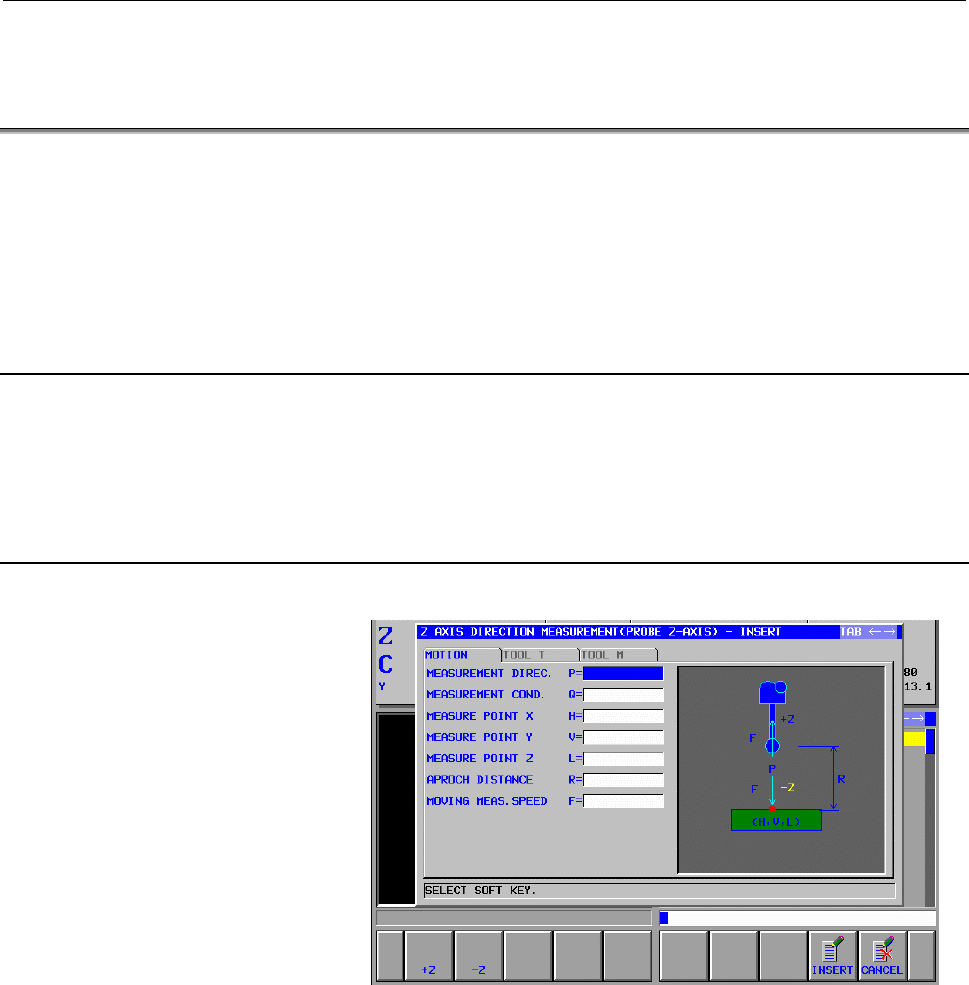

5.4.2 Displays on the Screen

MOTION screen

The function of this screen is the same as when tool management is

disabled.
