1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 16 -

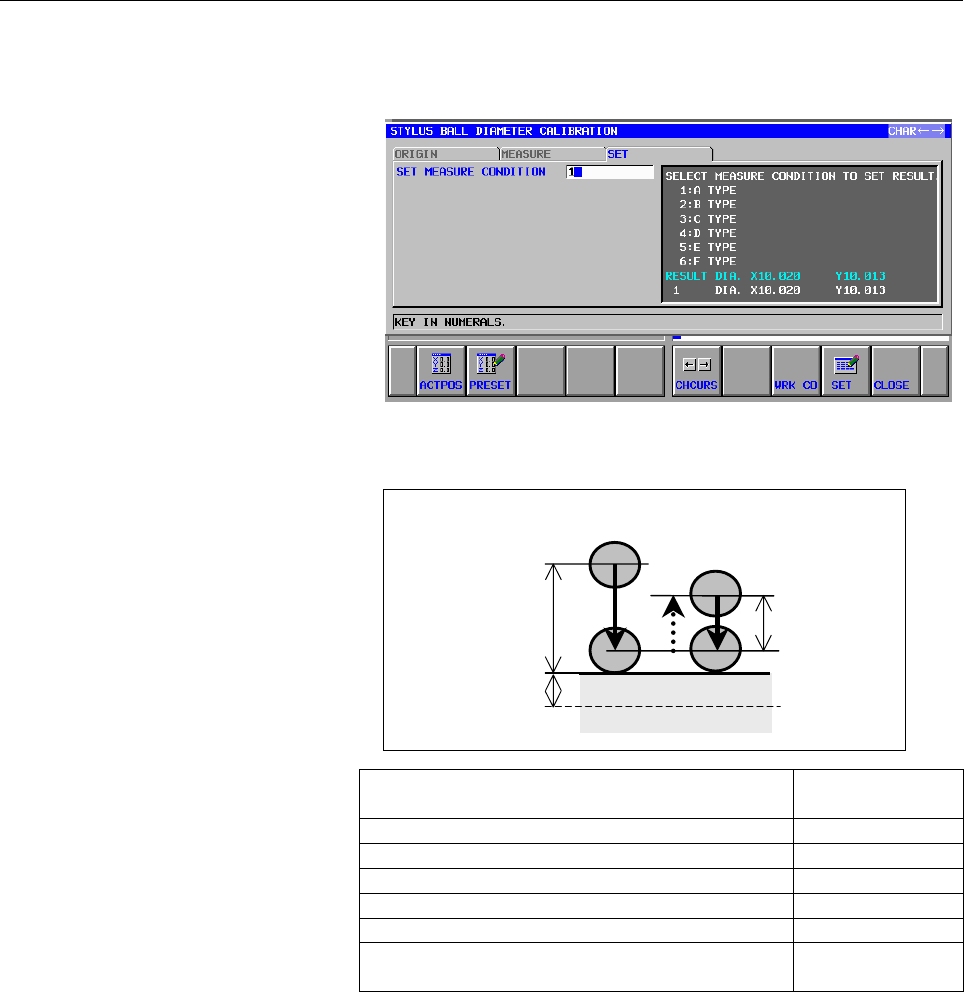

<13>After selecting the measurement condition, press the [SET] soft

key. The measurement result is set as the measurement

preparation data.

Measurement

Measurements are made as follows:

Meaning

Symbol in the

explanation

Feedrate in the first measurement cycle f1

Approach distance in the first measurement cycle α

Return distance in the first measurement cycle β

Overtravel distance at measurement γ

Feedrate in the second measurement cycle f2

Return distance after contact in the second

measurement cycle

<1> Get the probe close to the measurement position by moving it

manually.

<2> When measurement is started, the probe moves at a feedrate of

f1 in the range (α + γ) from the current position to perform the

first measurement cycle.

<3> Then, the probe returns through the distance β at the rapid

traverse rate. Within the range (β + γ) from the current position,

the probe moves at a feedrate of f2 to perform the second

measurement cycle.

<4> The probe returns through the distance ε at the rapid traverse

rate.

First measurement cycle

Second measurement cycle

Measurement

start point

Measurement

surface
