B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 69 -

1.5.4 INSIDE DIAMETER MEASUREMENT

Measurement procedure

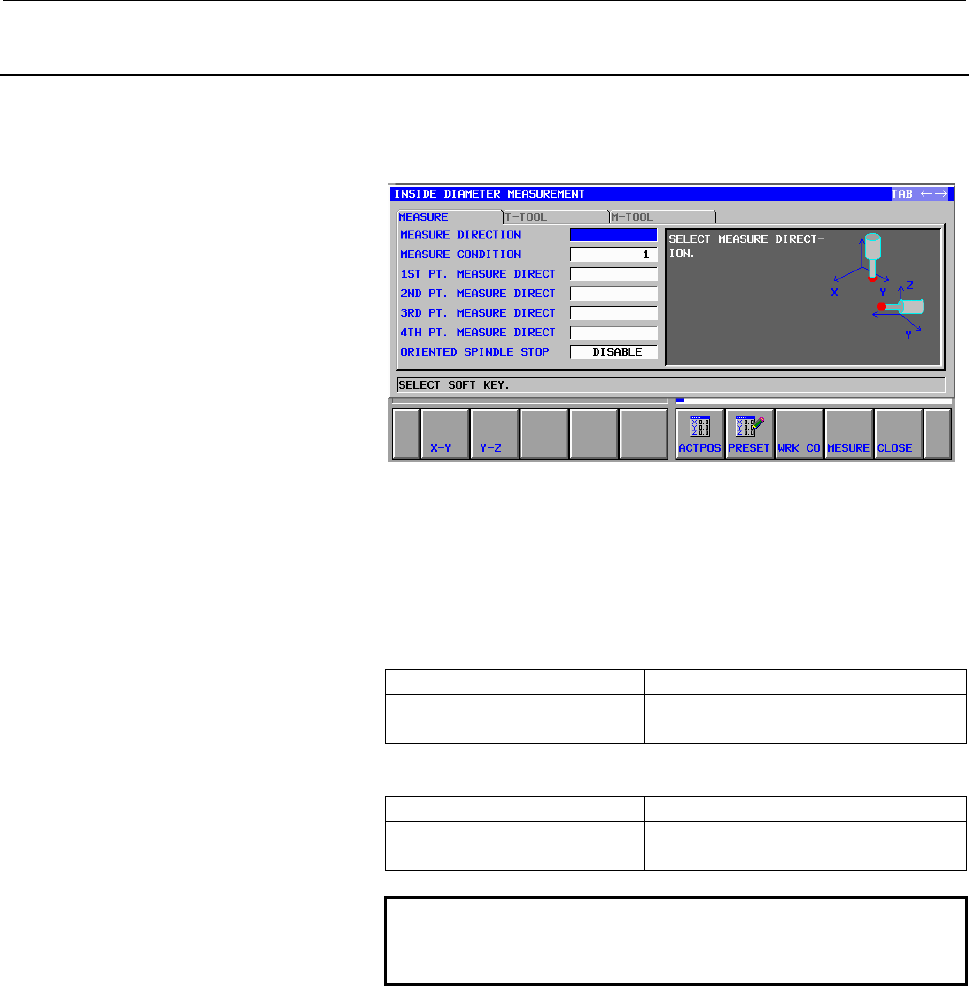

<1> Select "INSIDE DIAMETER MEASUREMENT" from the post-

machining inspection menu select screen.

The items displayed on this screen and the operating procedure

for them are the same as for OUTSIDE DIAMETER

MEASUREMENT.

(How to calculate the setting value)

The setting value is calculated as follows:

T-TOOL screen

Measurement direction Setting value

X-Y, Y-Z

(Target value – measurement result)

÷ 2 × offset value

M-TOOL screen

Measurement direction Setting value

X-Y, Y-Z

-(Target value – measurement result)

÷ 2 × offset value

NOTE

The offset value is specified as a measurement

condition.

Measurement

The measurement procedure for this screen is the same as for

"INSIDE DIAMETER MEASUREMENT" on the "WORK SET"

menu.
