B-63874EN-1/02 2.MEASUREMENT CYCLE

- 91 -

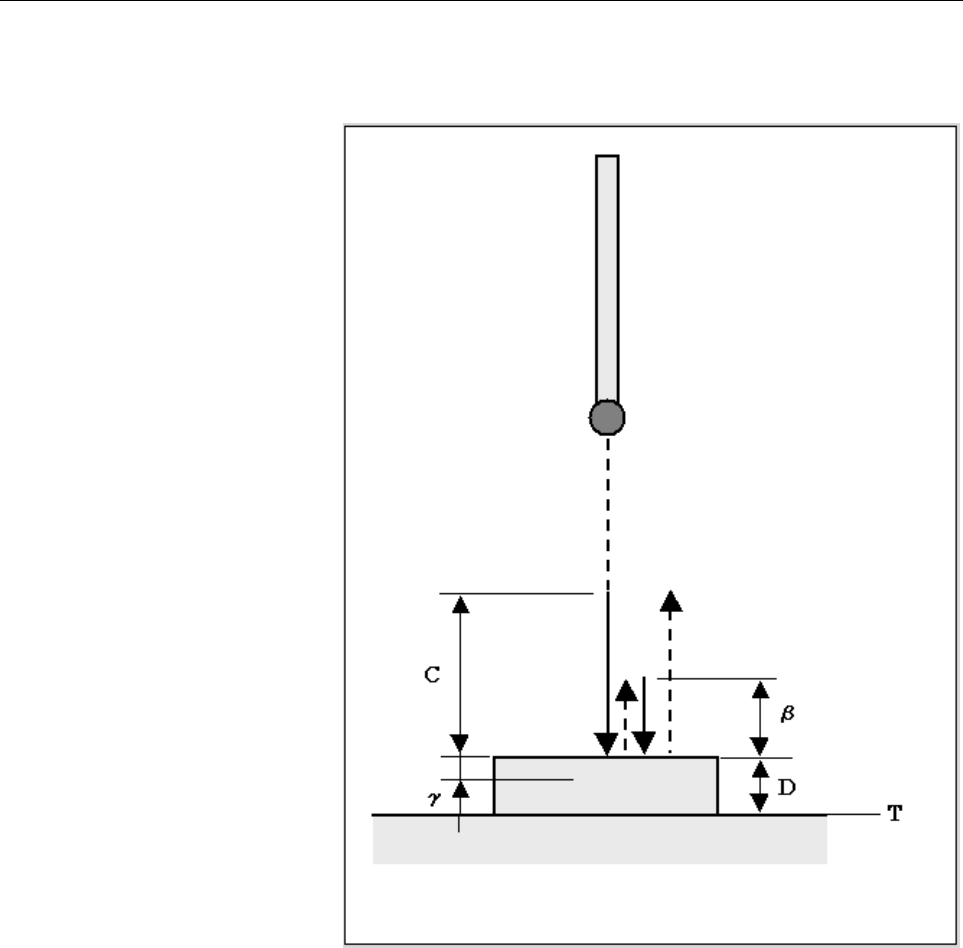

Measurement motion

Measurement motion is described below.

<1> A rapid movement is made from the current position to the point

specified by "MEASURE POINT X" and "MEASURE POINT

Y".

<2> In the Z-axis direction, a rapid movement is made to the

approach point (Z coordinate).

Here, the approach point (Z coordinate) represents (T + "REFER.

WORK HEIGHT " + "CLEARANCE").

<3> In the range from the approach point to ("CLEARANCE" + γ), a

measurement is made at feedrate f. (First measurement)

<4> Next, a rapid return movement is made by β, and a measurement

is made in the range from that position to (β + γ) at the feedrate

F specified by "MOVING MEAS. SPEED". (Second

measurement)

<5> Then, a rapid return movement is made by ε in the +Z-axis

direction.
