1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 26 -

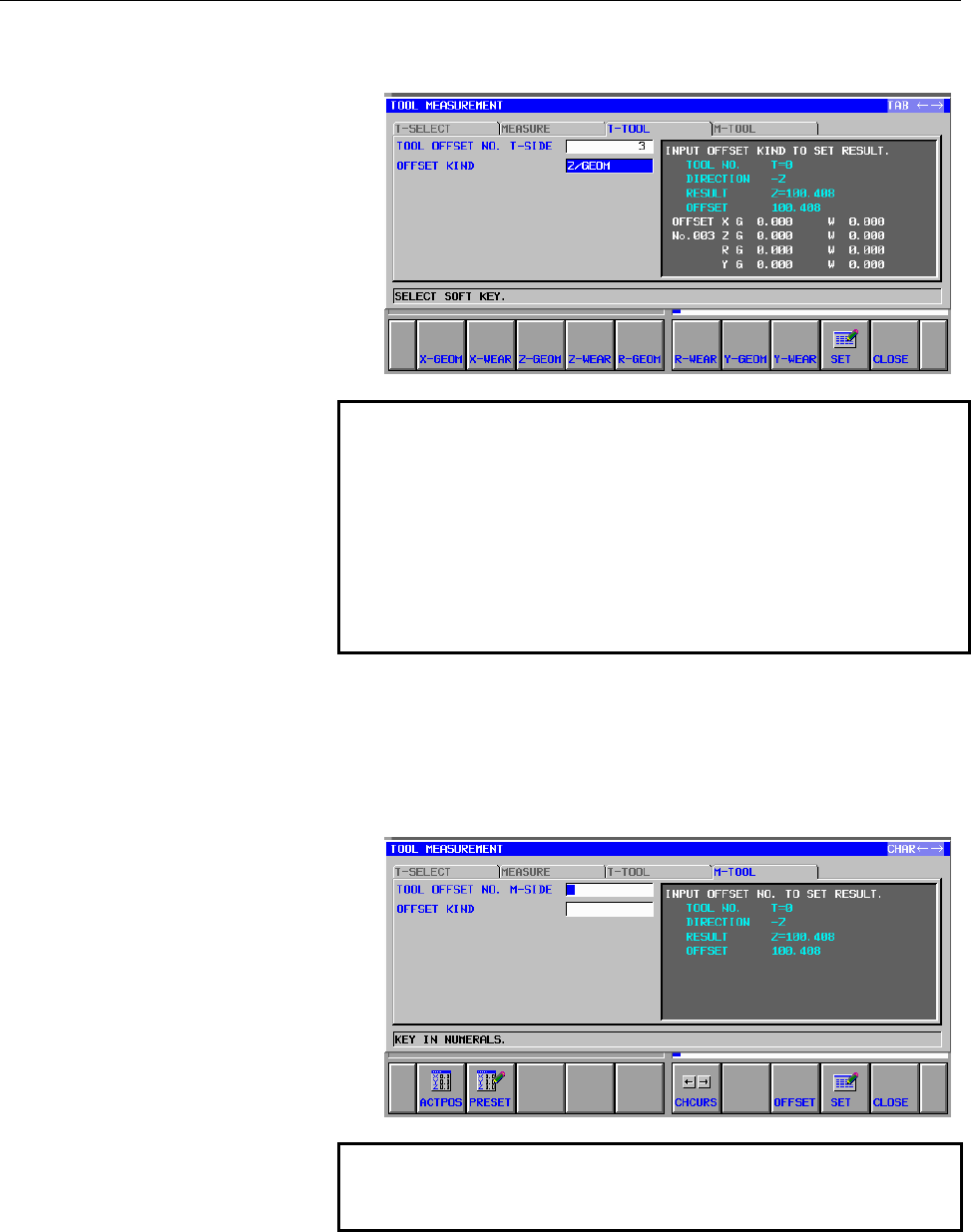

<15>After entering the necessary data, press the [SET] soft key. The

measurement result is set as the tool offset.

NOTE

When the "tool geometry/wear offset" function is

available, the tool wear offset is specified as 0 if the

offset obtained in measurement is set as the tool

geometry offset. If the offset obtained in

measurement is to be set as the tool wear offset, the

difference between the measurement result and the

original tool geometry offset value is set as the tool

wear offset value.

<16>If you want to make measurements for another tool, return to the

"T-SELECT" screen.

<17>Pressing the [→] cursor key displays the "M-TOOL" screen, on

which it is possible to specify a milling tool offset number as the

item for which the offset value is to be set.

NOTE

With the CNC for a lathe, the “M-TOOL” screen is

not displayed.

<18>Enter a milling tool offset number in "TOOL OFFSET NO. M-

SIDE."

When an offset number is entered, the current offset value for

the offset number is displayed in the right section of the screen.
