1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 62 -

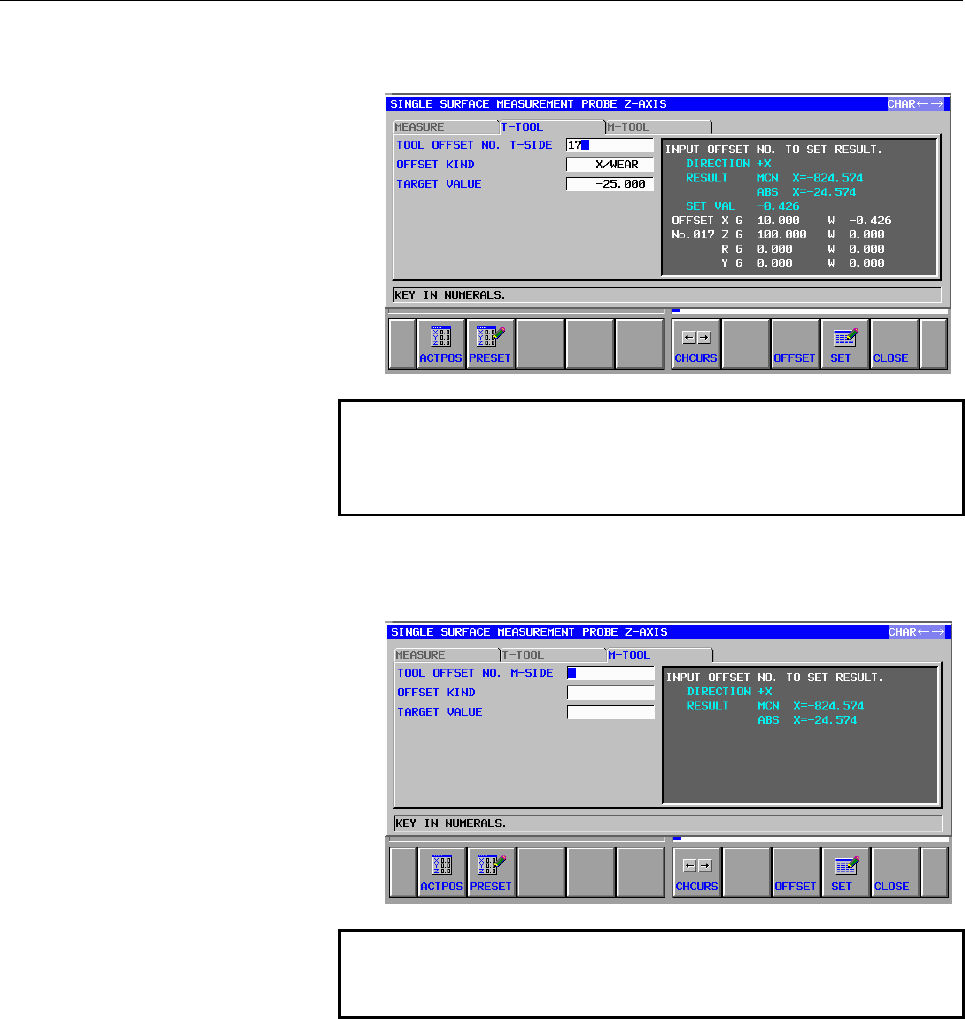

<6> After entering the necessary data, press the [SET] soft key. The

measurement result is set as the tool offset value.

NOTE

A value displayed as the setting value is added to

the offset value for the item specified in OFFSET

KIND.

<7> Pressing the [→] cursor key displays the "M-TOOL" screen, on

which it is possible to specify a milling tool offset number for

the item for which the offset value is to be set.

NOTE

With the CNC for a lathe, the “M-TOOL” screen is

not displayed.

<8> In "TOOL OFFSET NO. M-SIDE," specify a milling tool offset

number.

When an offset number is entered, the current offset value for

the offset number is displayed on the right section of the screen.
