Manual Guide i Operators manual Page 37

Operators manual

Page of 410

/ 410

B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 29 -

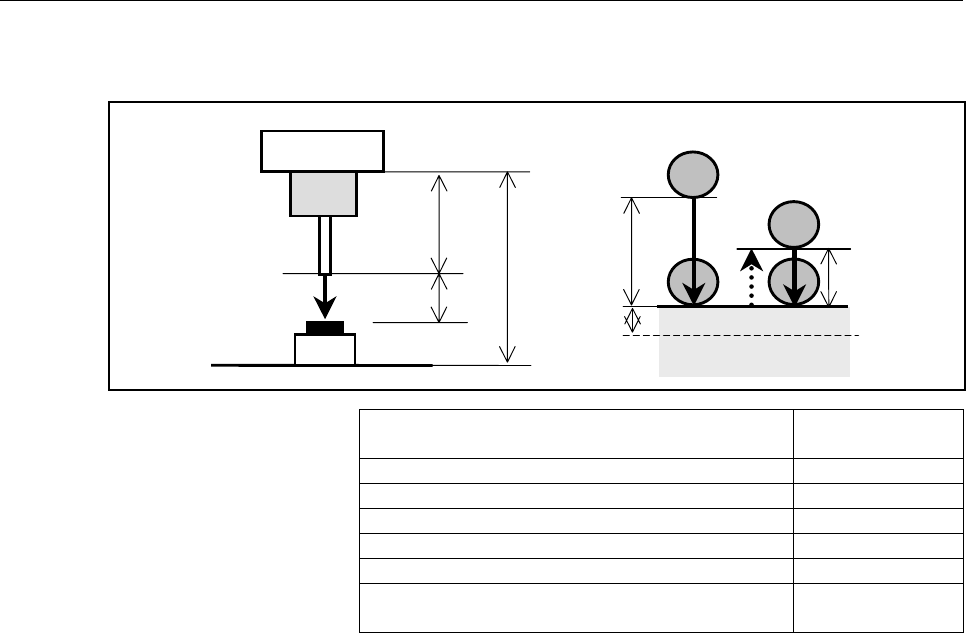

Measurement

Measurements are made as follows:

Meaning

Symbol in the

explanation

Feedrate in the first measurement cycle f1

Approach distance in the first measurement cycle α

Return distance in the first measurement cycle β

Overtravel distance at measurement γ

Feedrate in the second measurement cycle f2

Return distance after contact in the second

measurement cycle

<1> Get the tool close to the touch sensor by moving it manually.

<2> Within the range (α + γ ) from the measurement start point, the

tool moves at a feedrate of f1 to perform the first measurement

cycle.

<3> Then, the tool returns through the distance β at the rapid traverse

rate. Within the range (β + γ) from the current position, the tool

moves at a specified feedrate of f2 to perform the second

measurement cycle.

<4> After the second measurement cycle, the tool returns through the

distance ε at the rapid traverse speed.

First measurement cycle

Second measurement cycle

Touch

sensor top

surface

Touch sensor

Tool

length

Tool

Measurement

start point
