3.MEASUREMENT SETTING SCREENS B-63874EN-1/02

- 268 -

3.3 SUPPORT FOR INCH/METRIC SWITCHING WITH THE

SET-UP GUIDANCE FUNCTIONS

Inch/metric mode switching is supported for data handled with the

set-up guidance functions. So, even when data set as metric data is

entered, the data is automatically converted to inch data for display if

the inch mode is set.

NOTE

The inch/metric switching function is an NC option

function.

3.3.1 Data Display

Measurement condition data and calibration data is automatically

converted for display according to the inch/metric mode setting.

Measurement condition data and calibration data is stored in macro

variables for measurement. In this case, the data is stored as metric

data. When such data is displayed on the setting screen, or is

referenced for measurement macro execution, the data is converted to

inch data when acquired if the inch mode is set.

Feedrate-related data is displayed as follows according to the

inch/metric mode setting:

For metric display:

Data is displayed with all fractional digits discarded.

For inch display:

Data is displayed with two decimal places.

(Example) Feedrate for the first measurement time

For metric display: 300 [mm/min]

For inch display: 11.81 [inch/min]

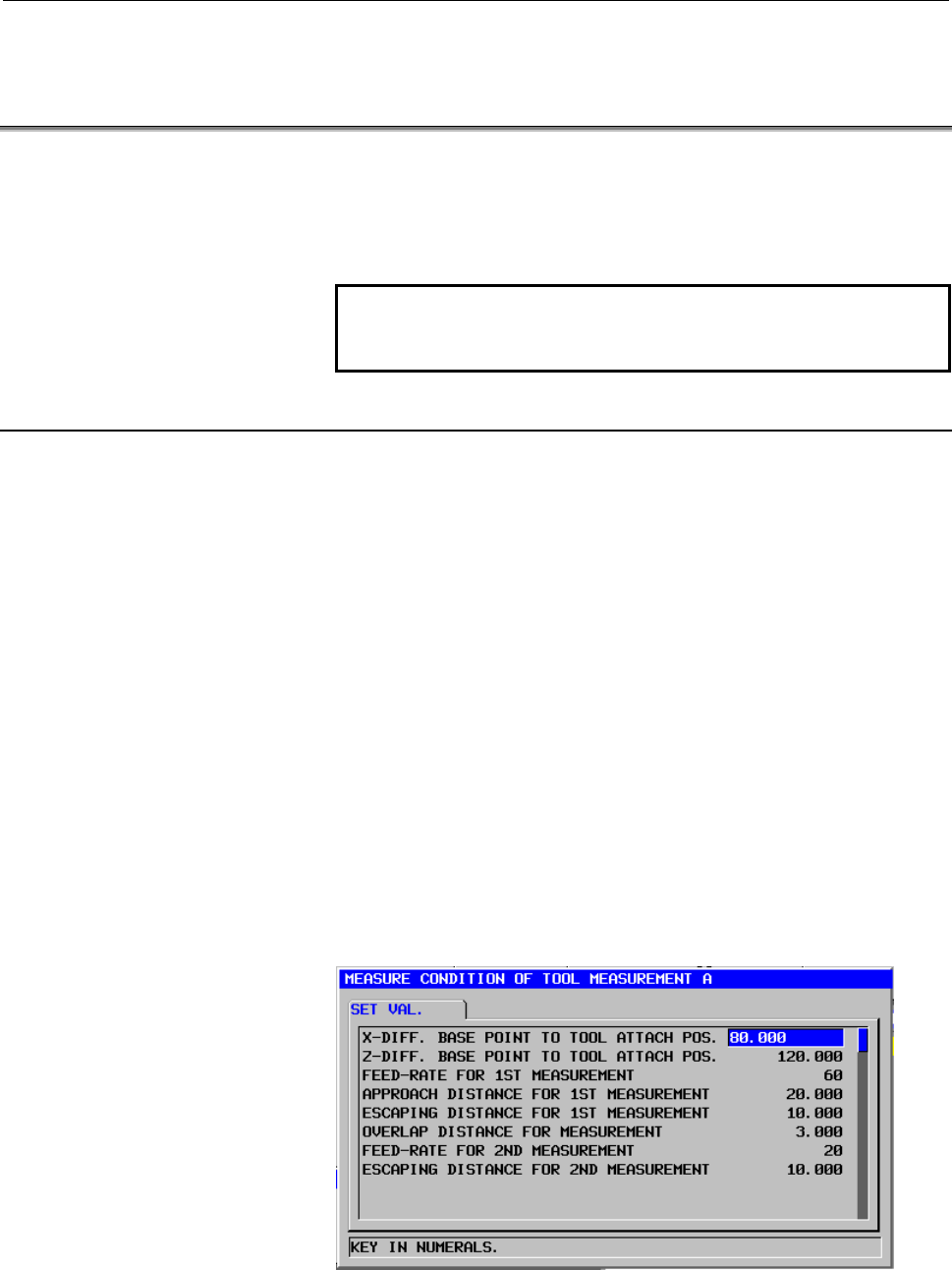

(Example of screen display for tool measurement conditions)

Screen display when metric input is set
