1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 50 -

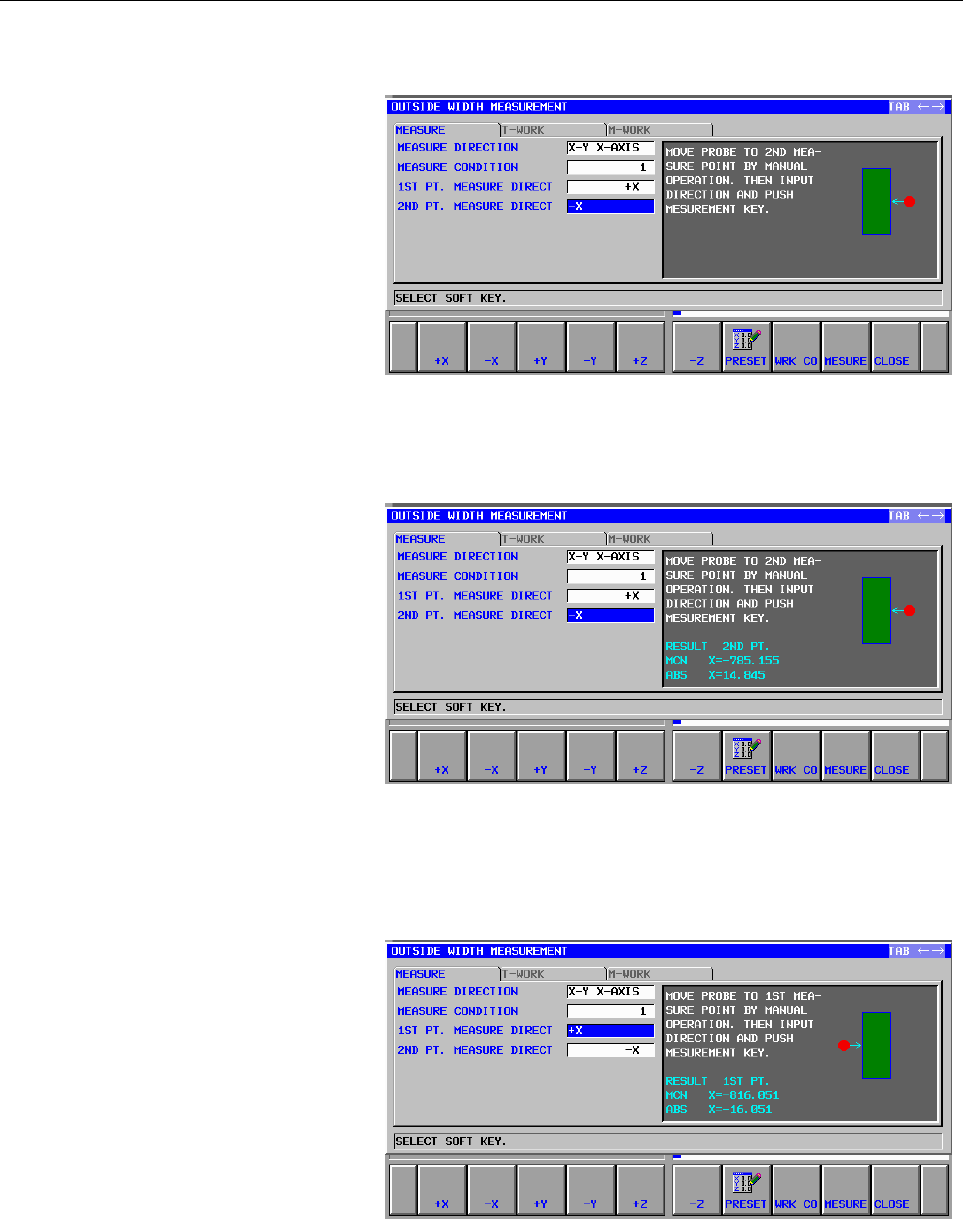

<8> Pressing the [↓] cursor key displays a guide chart for "2ND PT.

MEASURE DIRECT."

<9> By moving the probe manually, get it close to the second

measurement point so that measurement is possible with the

movement of the probe along the axis in one direction, and then

make the same measurement as for the first measurement point.

<10>After measurements are made, placing the cursor on a

measurement point displayed on the "MEASURE" screen re-

displays the measurement result on that point. Under this

condition, pressing the [MESURE] soft key triggers re-

measurements on the point.
