2.MEASUREMENT CYCLE B-63874EN-1/02

- 234 -

2.8.8 C-axis Outside Width Measurement

When the probe is oriented in the X-axis direction, the center angle of

a projection width in the C-axis direction is measured.

When you select "C-AXIS OUTSIDE WIDTH WORK SETUP

(PROBE X-AXIS)" on the centering menu selection screen of the

measurement cycle, the following screen appears:

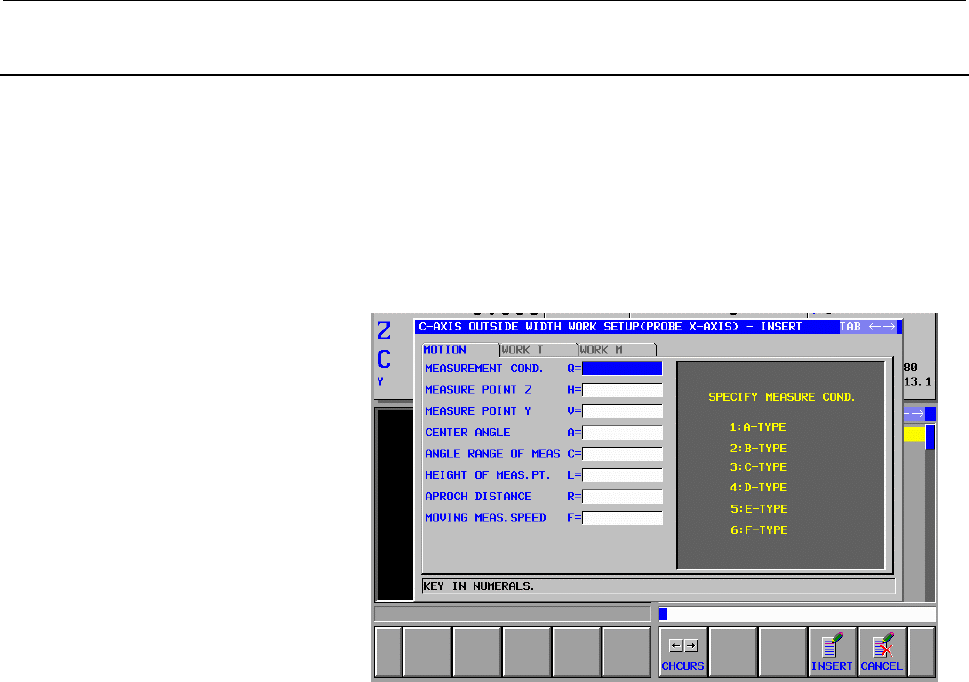

Measurement motion screen

- MEASURE POINT Z, Y

Enter the Y and Z coordinates of a measurement start point.

Enter numeric values.

- CENTER ANGLE

Enter the correct center angle of the C coordinate.

Enter a numeric value (in the input unit for angle).

The descriptions of the other input items are the same as for "C-axis

Outside Width Measurement" of "WORK SET (PROBE Z-AXIS

DIRECTION)".

Input screen for automatic workpiece offset value setting

The descriptions of the input items are the same as for "C-axis

Outside Width Measurement" of "WORK SET (PROBE Z-AXIS

DIRECTION)".
