Manual Guide i Operators manual Page 76

Operators manual

Page of 410

/ 410

1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 68 -

NOTE

With the CNC for a lathe, the “M-TOOL” screen is

not displayed.

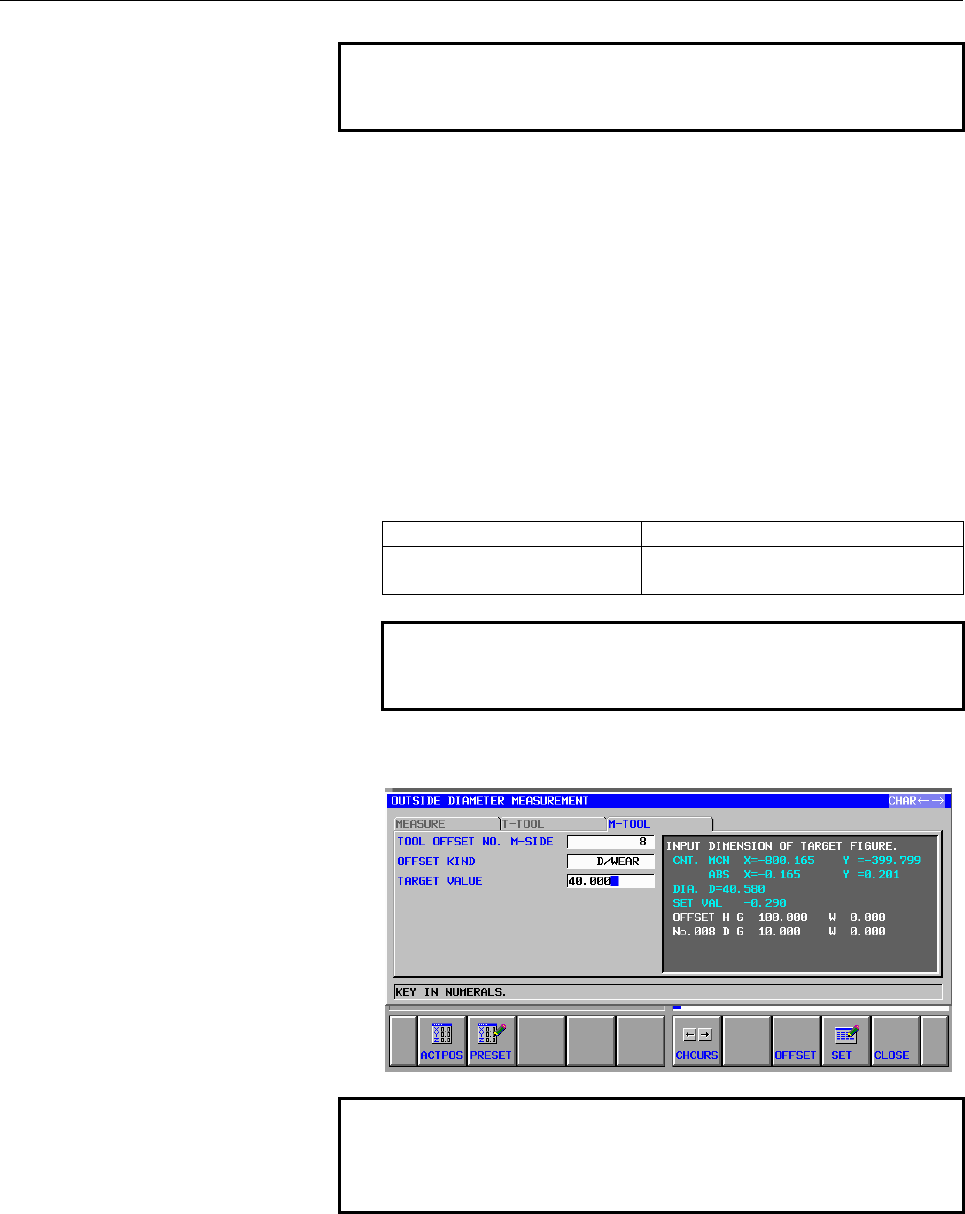

<8> In "TOOL OFFSET NO. M-SIDE," specify a milling tool offset

number.

When an offset number is entered, the current offset value for

the offset number is displayed on the right section of the screen.

<9> Select a value for "OFFSET KIND," using the soft keys.

<10>In "TARGET VALUE," specify the desired post-machining

outside diameter value. After the value is entered, the value

obtained by multiplying a difference between the target value

and the measurement result by the offset value is displayed as

the setting value.

(How to calculate the setting value)

The setting value is calculated as follows:

Measurement direction Setting value

X-Y, Y-Z

(Target value – measurement result)

÷ 2 × offset value

NOTE

The offset value is specified as a measurement

condition.

<11>After entering the necessary data, press the [SET] soft key. The

measurement result is set as the tool offset value.

NOTE

A value displayed as the setting value is added to

the offset value for the item specified in OFFSET

KIND.

Measurement

The contents are the same as for "OUTSIDE DIAMETER

MEASUREMENT" on the "WORK SET" menu.
