2.MEASUREMENT CYCLE B-63874EN-1/02

- 80 -

2.2 CALIBRATION (PROBE Z-AXIS DIRECTION)

2.2.1 Touch Sensor Position Measurement

When the reference tool is oriented in the Z-axis direction, the

position of the touch sensor for tool measurement is measured.

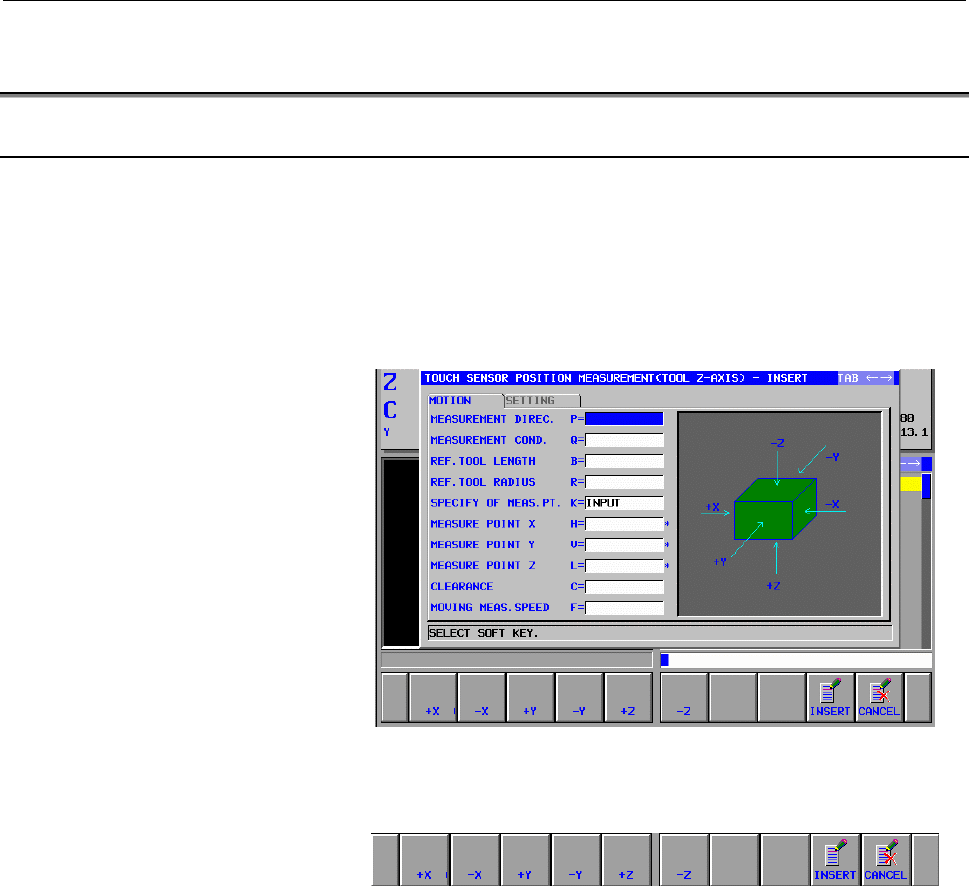

Measurement motion screen

When you select "TOUCH SENSOR POSITION MEASUREMENT

(TOOL Z-AXIS)" on the calibration menu selection screen of the

measurement cycle, the following screen appears:

- MEASUREMENT DIREC.

Specify an axis direction for measurement.

Select a desired axis direction from the following soft keys:

- MEASUREMENT COND.

Specify a measurement condition group number to be referenced at

the time of measurement.

Enter a numeric value.

- REF. TOOL LENGTH

Enter the dimension of the reference tool in the Z-axis direction.

Enter a numeric value.
