1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 34 -

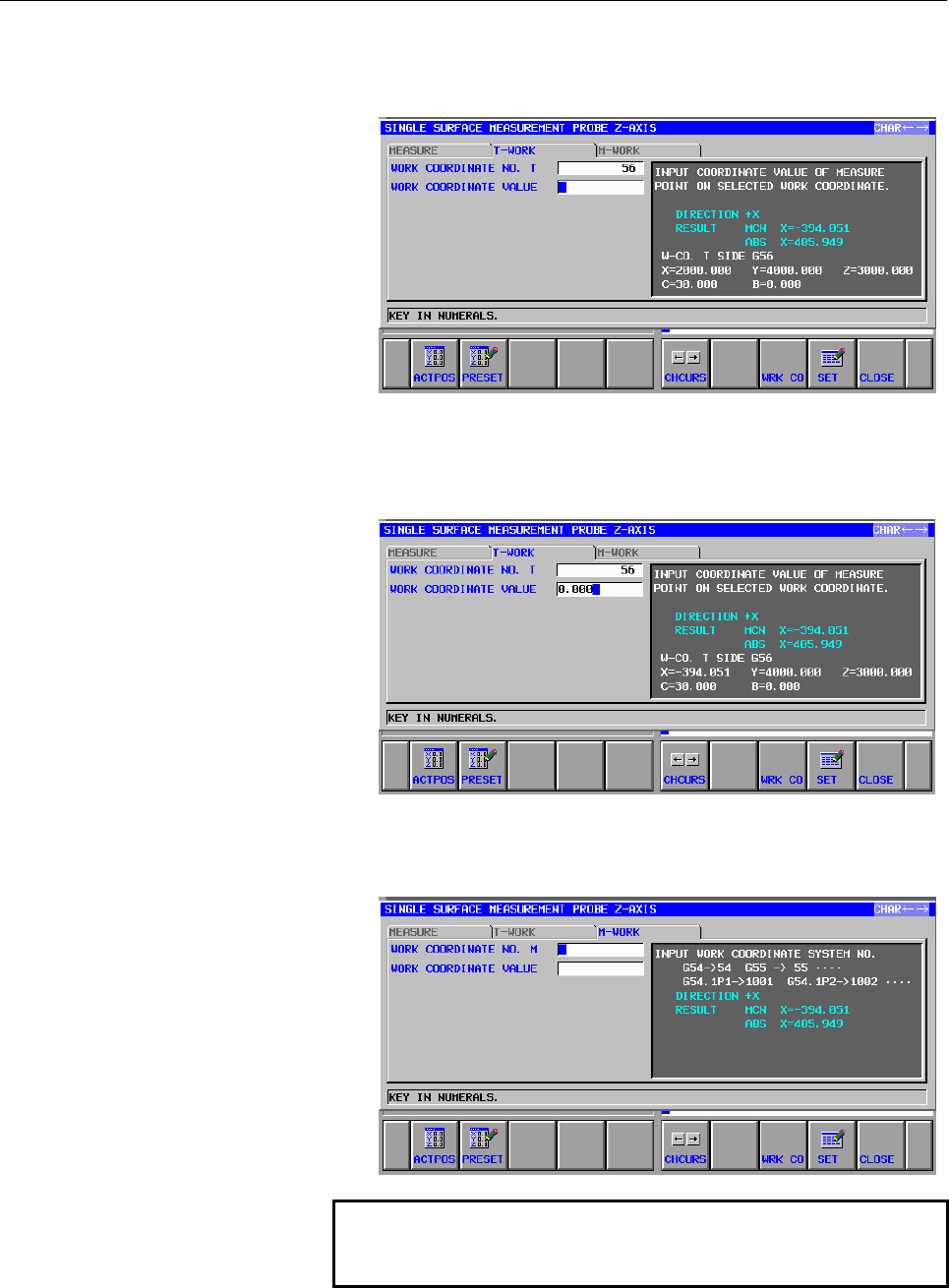

<11>In "WORK COORDINATE VALUE," specify what coordinates

in the workpiece coordinate system are to be assigned to the

measurement point.

<12>Press the [SET] soft key. A value calculated from the

measurement result and the value specified in "WORK

COORIDANTE VALUE" is set as the data for the selected

workpiece coordinate system.

<13>Pressing the [→] cursor key displays the "M-WORK" screen, on

which a milling tool offset number can be specified as the item

for which the offset value is to be set.

NOTE

With the CNC for a lathe, the “M-WORK” screen is

not displayed.
