B-63874EN-1/02 2.MEASUREMENT CYCLE

- 167 -

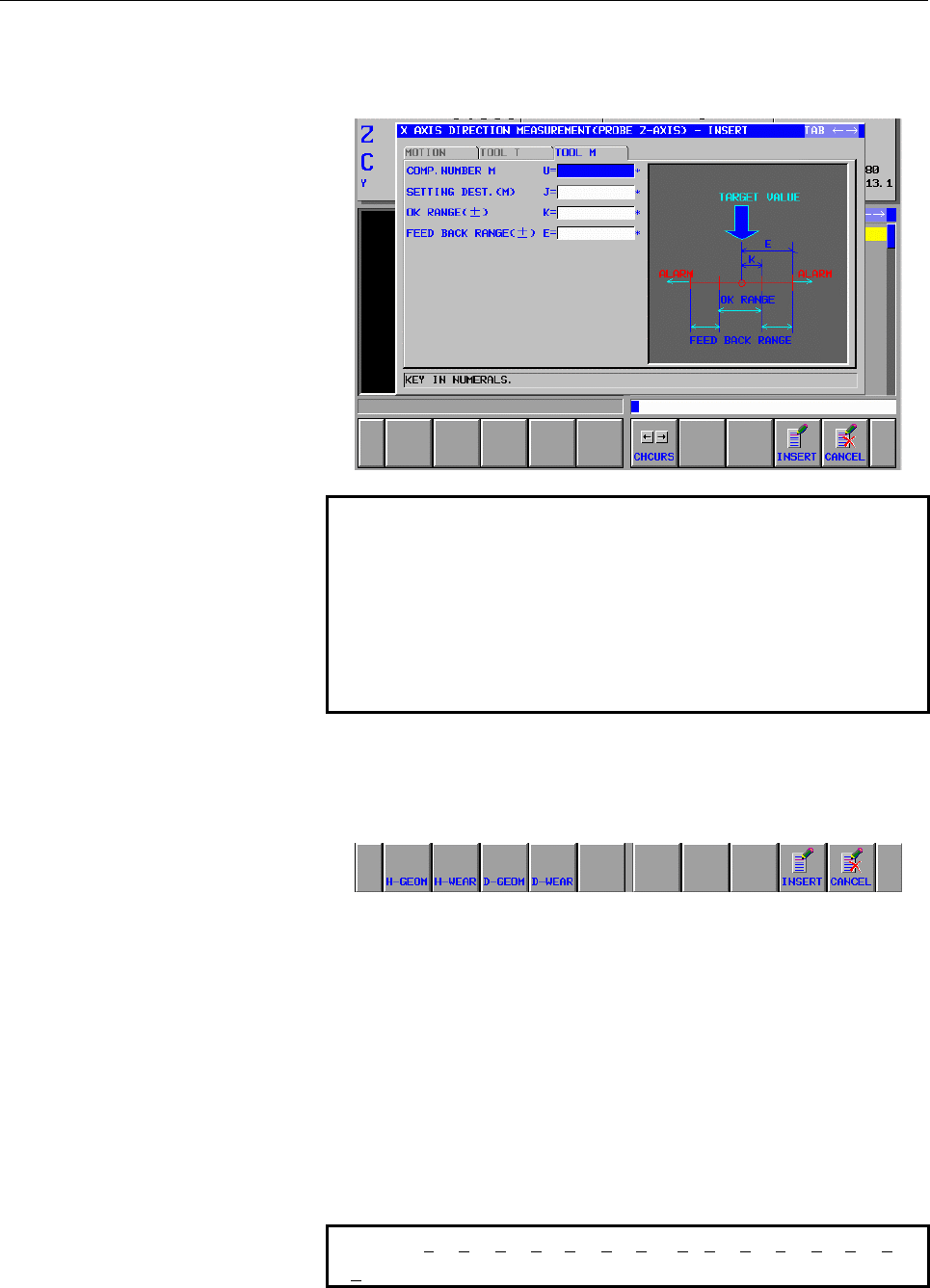

Input screen for automatic tool offset value setting (milling side)

This screen enables specification for setting a measured value as a

tool offset value on the milling side.

NOTE

1 With the CNC for a lathe, the "TOOL M" screen is

not displayed.

2 "32 tool compensation sets", "64 tool compensation

sets", "99 tool compensation sets", "200 tool

compensation sets", "400 tool compensation sets",

"499 tool compensation sets", and "999 tool

compensation sets" are optional.

SETTING DEST. (M)

Specify a tool offset item for which the result of measurement is to be

set.

Select a desired tool offset item from the following soft keys:

The descriptions of the other items are the same as for the turning

side.

Measurement motion

The description is the same as for "X-AXIS DIRECTION WORK

SETUP (PROBE Z-AXIS).

G code format

When you press the INSERT key after entering necessary data, a G

code program in the following format is stored in the machining

program memory:

G2040 Q P

H V L R F W I S Y U J K

E ;
