FANUC MANUAL GUIDE i

(Series16i/18i/21i-MB/TB)

OPERATOR’S MANUAL

B-63874EN-1/02-3

Page

FANUC LTD.

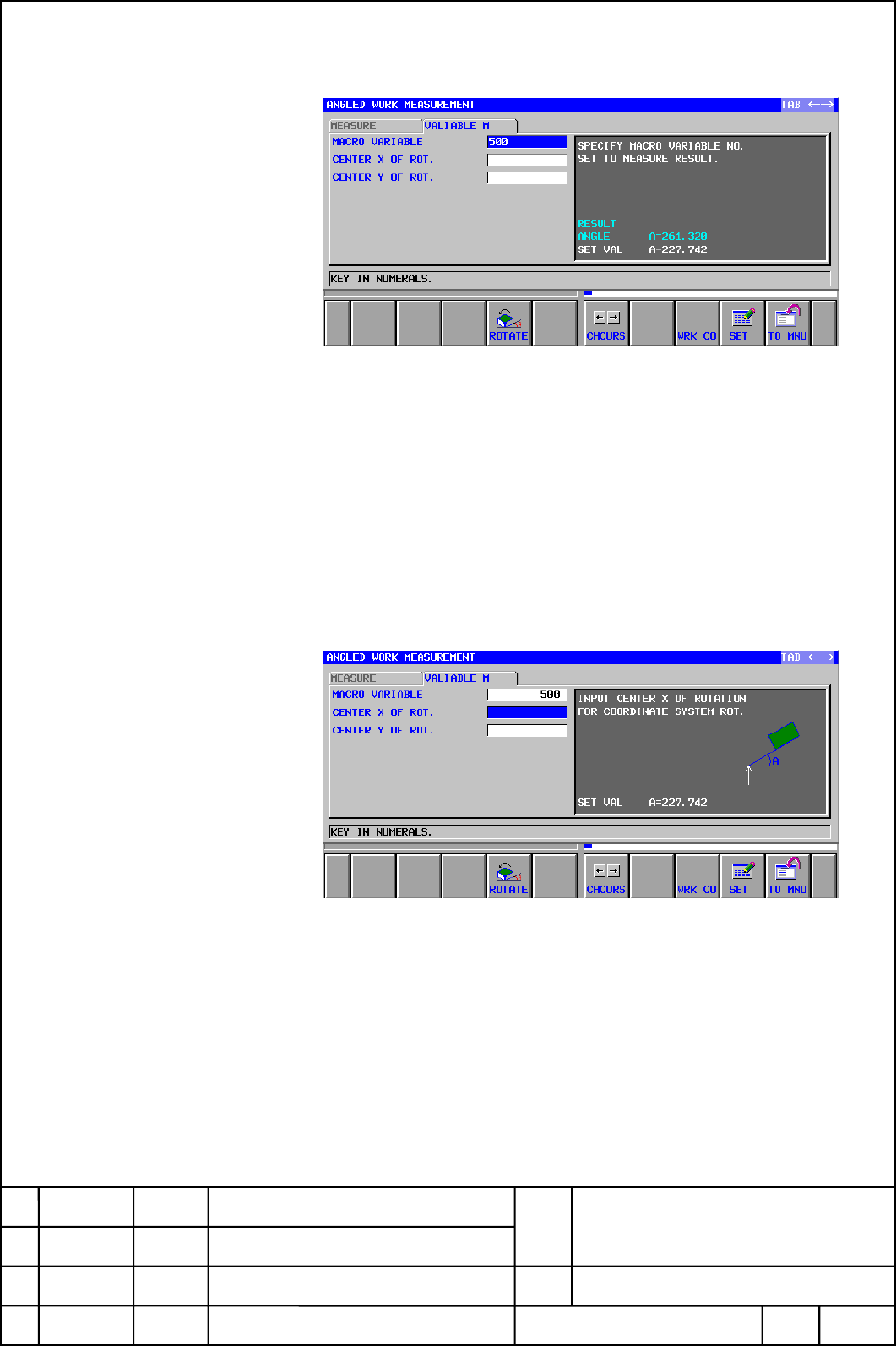

Slope of work(angle) that calculated by 2 point of measurement result

is displayed to guidance window.

Specify the macro variable number to feedback the measurement

result to a input item “macro variable. Default value, which is set to

parameter No.27246, is displayed. Presently set value to macro

variable is displayed at guidance window.

When a manual measurement is uncompleted, the following screen is

displayed.

In right section of the screen, current setting value of specified macro

variable is displayed.

When macro variable of specified macro variable number at input item

“macro variable” is not existing, or macro variable number is blank, a

current setting value of macro variable is not displayed in right section

of the screen .
