2.MEASUREMENT CYCLE B-63874EN-1/02

- 138 -

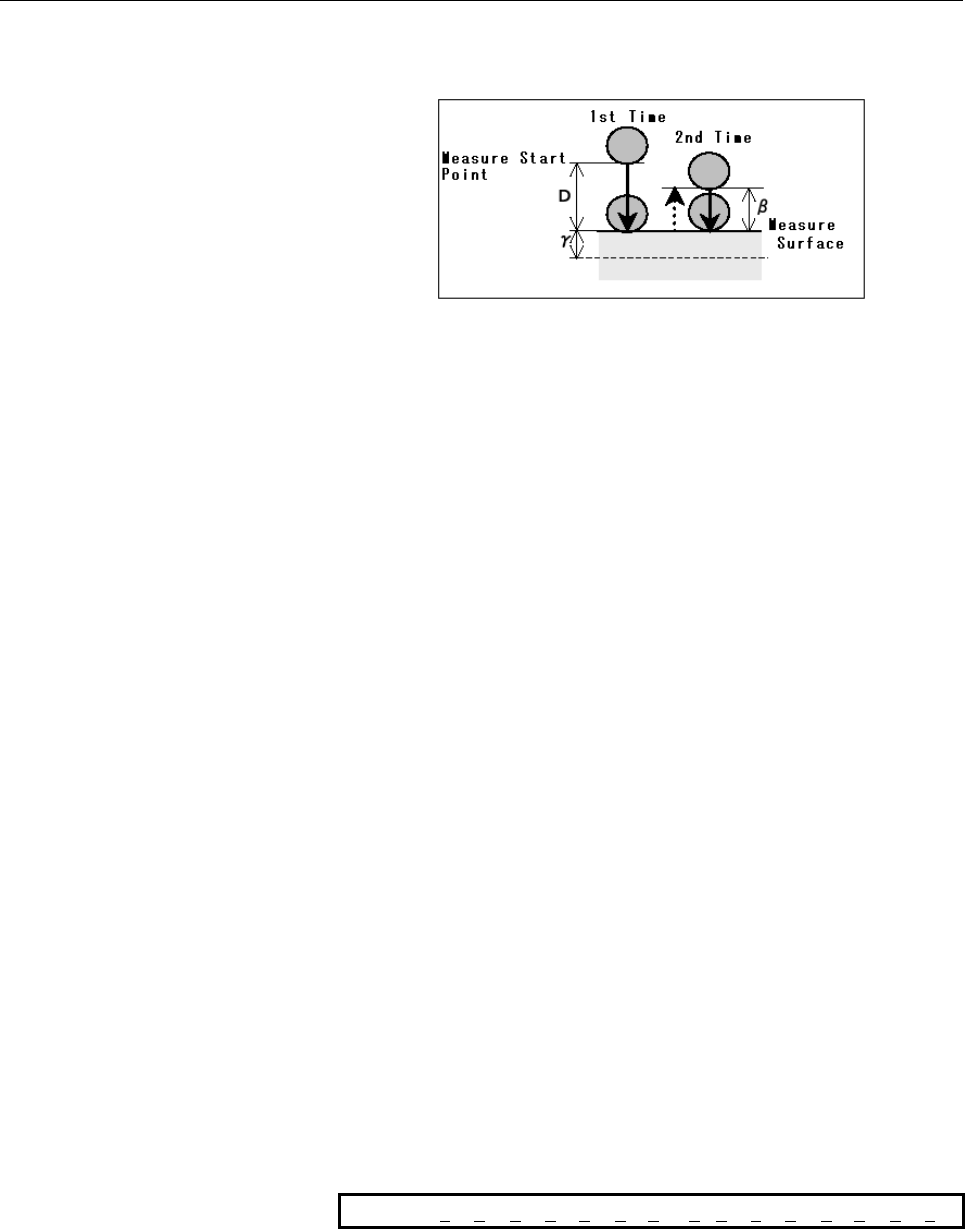

Measurement motion

Measurement motion is described below.

<1> A rapid movement is made from the current position to the point

specified by "MEASURE POINT X" and "MEASURE POINT

Y".

<2> In the Z-axis direction, a rapid movement is made to the

approach point (Z coordinate).

Here, the approach point (Z coordinate) represents ("MEASURE

POINT Z" - "APROCH DISTANCE") when the measurement

direction is "+Z", or the approach point (Z coordinate) represents

("MEASURE POINT Z" + "APROCH DISTANCE") when the

measurement direction is "-Z".

<3> In the range from the approach point to ("APROCH

DISTANCE" + γ), a measurement is made at feedrate f. (First

measurement)

<4> Next, a rapid return movement is made to the position (first

measurement point + β), and a measurement is made in the range

from that position to (first measurement point - γ) at the

specified feedrate F. (Second measurement)

The symbols used above have the following meanings:

f: Value of “FEED-RATE FOR 1ST MEASUREMENT" in the

measurement condition of the group number specified in

"MEASUREMENT COND.

β: Value of "ESCAPING DISTANCE FOR 1ST

MEASUREMENT" in the measurement condition of the group

number specified in "MEASUREMENT COND."

γ: Value of "OVERLAP DISTANCE FOR MEASUREMENT" in

the measurement condition of the group number specified in

"MEASUREMENT COND."

G code format

When you press the INSERT key after entering necessary data, a G

code program in the following format is stored in the machining

program memory:

G2022 Q

P H V L R F W I S Y U J K E ;

Measurement result

When G2022 is executed, the result of measurement is output to

macro variables for the result of measurement and as the Z coordinate

of a specified workpiece origin offset value.
