Manual Guide i Operators manual Page 39

Operators manual

Page of 410

/ 410

B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 31 -

1.4 WORK SET

1.4.1 SINGLE SURFACE MEASUREMENT PROBE Z-AXIS

Measurement procedure

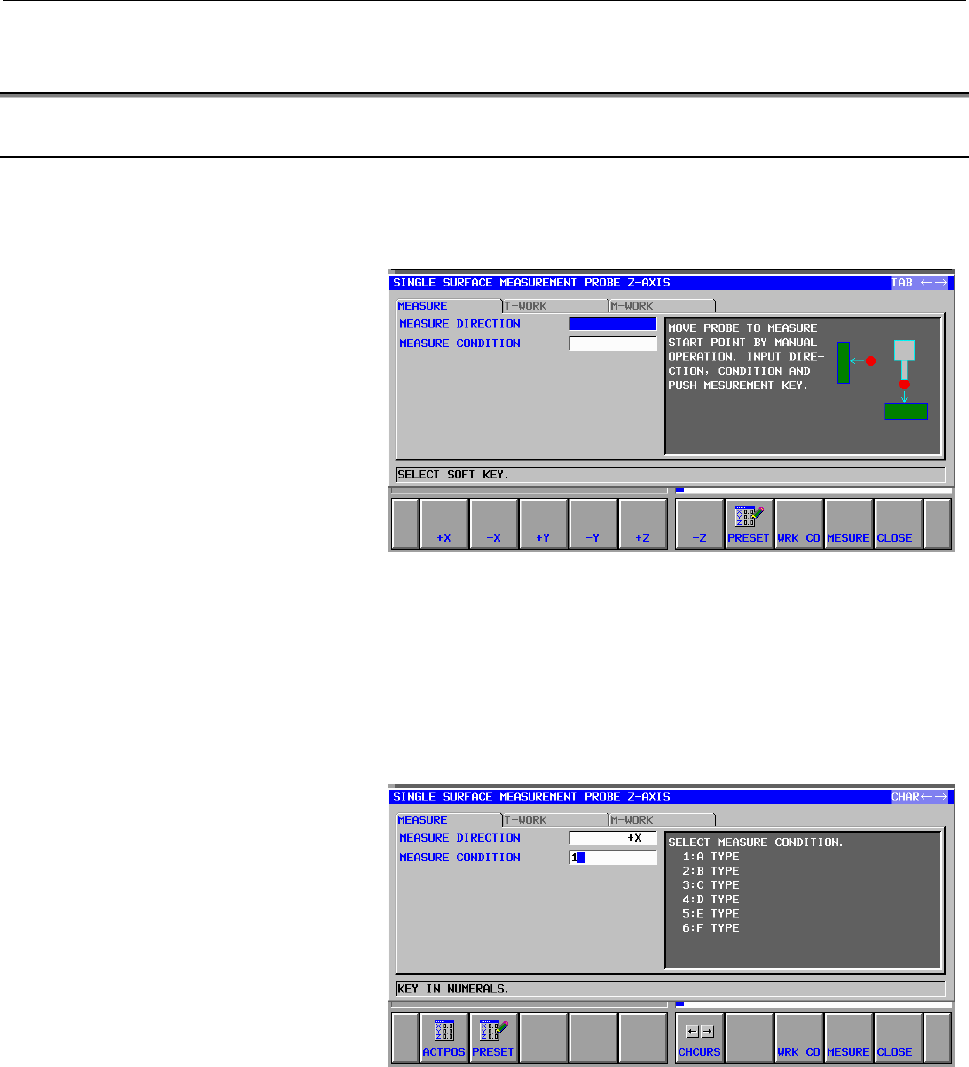

<1> Select "SINGLE SURFACE MEASUREMENT PROBE Z-

AXIS" from the centering menu select screen.

<2> By moving the probe manually, get it close to the measurement

point where measurement is possible with the movement of the

probe along the axis in one direction.

<3> After moving the probe, select a measurement direction from the

[+X], [-X], [+Y], [-Y], [+Z], and [-Z] soft keys.

<4> In "MEASURE CONDITION," select a measure condition.

<5> Set up "MEASURE CONDITION." If it is possible to specify

more than one measurement condition, specify here which

measurement condition is to be used for measurements.
