B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 23 -

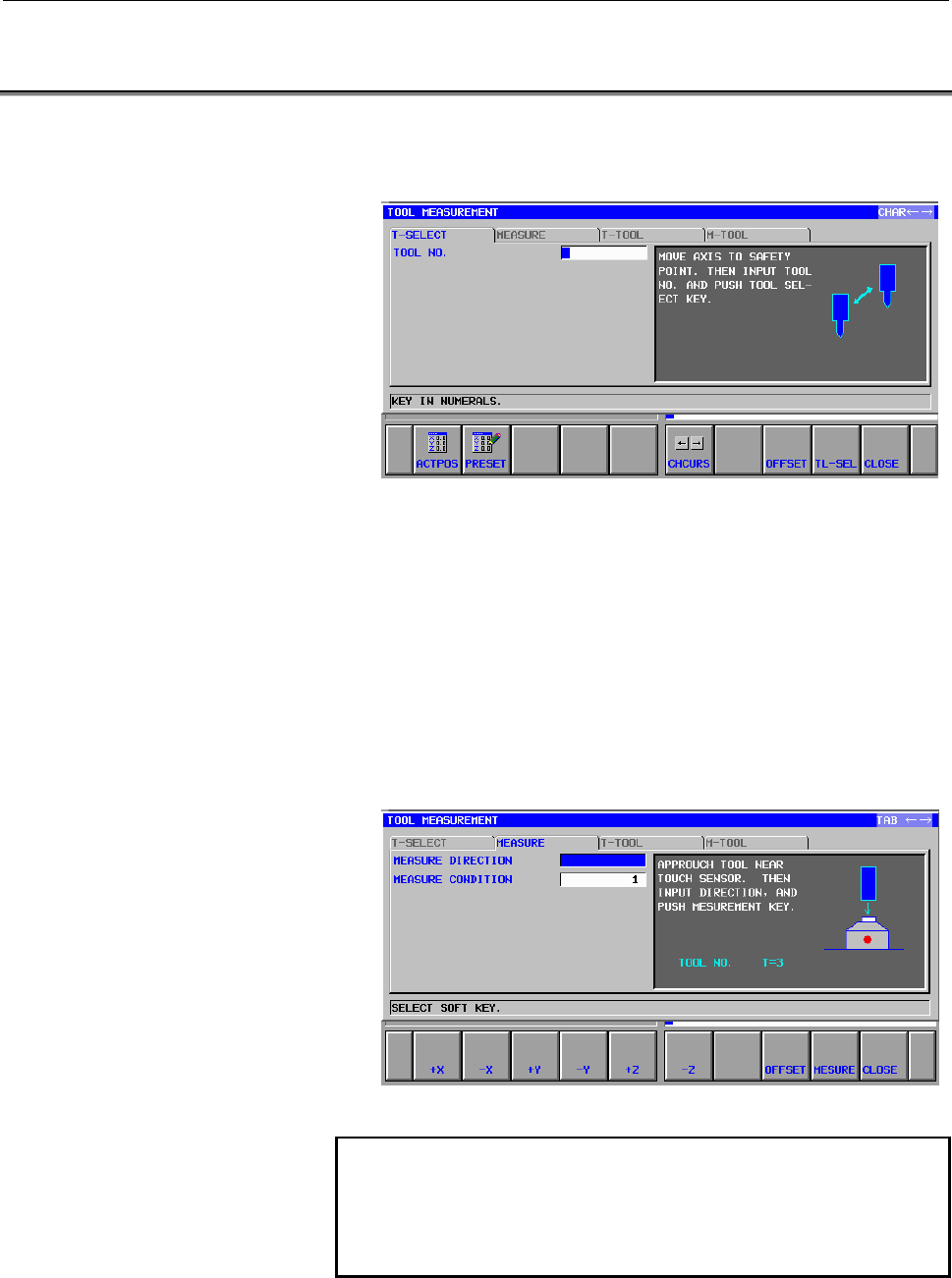

1.3 TOOL MEASUREMENT

Measurement procedure

<1> Select TOOL MEASUREMENT from the tool measurement

menu.

<2> If a measurement tool was already selected, go to the

“MEASURE” screen.

<3> Place the spindle in a place where it is safe to exchange the tool.

<4> After entering the tool number for which measurements are to be

made, press the [INPUT] key.

<5> Press the [TL-SEL]soft key. The specified tool is selected.

<6> After the tool is selected, press [→] cursor key to select

"MEASURE."

<7> Get the tool close to the touch sensor by moving it manually.

NOTE

Place the tool in such a safe place that when

measurement is performed, that is, the tool touches

the touch sensor, the measurement tool will not

touch the workpiece or machine.

<8> After moving the tool, select a measurement direction from the

[+X], [-X], [+Y], [-Y], [+Z], and [-Z] soft keys.
