B-63874EN-1/02 2.MEASUREMENT CYCLE

- 191 -

2.6.3 Stylus Ball Diameter Measurement

The diameters of the stylus ball in the Y-axis direction and Z-axis

direction are measured.

When you select "STYLUS BALL DIAMETER CALIBRATION

(PROBE X-AXIS)" on the calibration menu selection screen of the

measurement cycle, the screen below appears.

A measurement is made on the YZ plane.

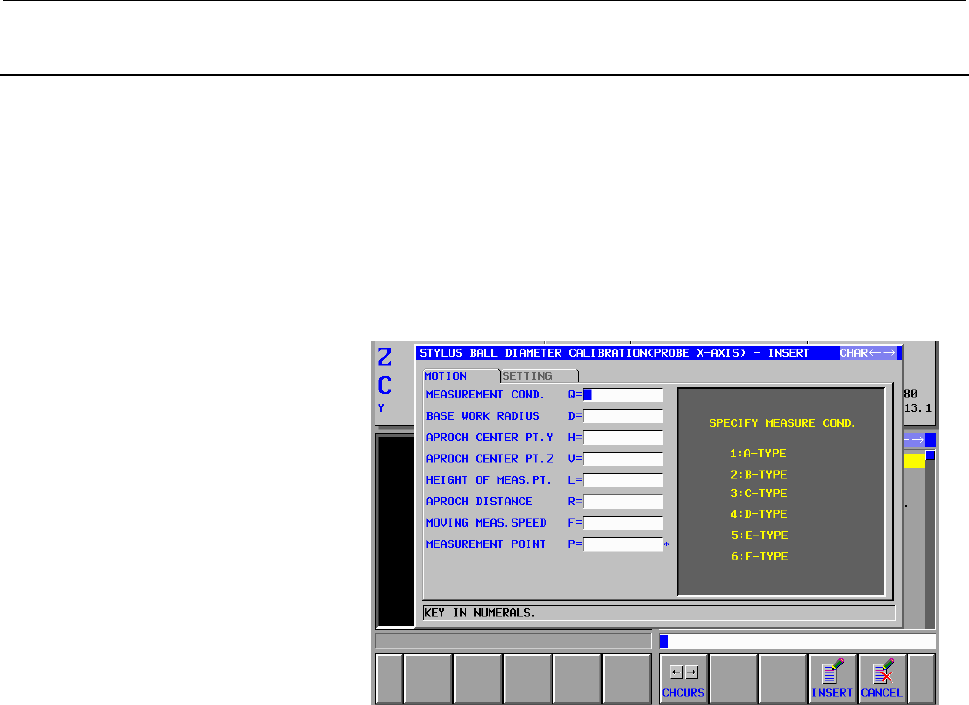

Measurement motion screen

- APROCH CENTER PT. Y, Z

Enter the Y and Z coordinates of a measurement start point.

Usually, enter the coordinates of the center of the reference

workpiece.

Enter numeric values.

- HEIGHT OF MEAS. PT.

Enter the height of a measurement point in the X-axis direction.

Enter a numeric value.

The descriptions of the other input items are the same as for "Stylus

Ball Diameter Measurement" of "CALIBRATION (PROBE Z-AXIS

DIRECTION)".
