B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 55 -

1.4.7 C AXIS PHASE MEASUREMENT OF OUTSIDE GROOVE

Measurement procedure

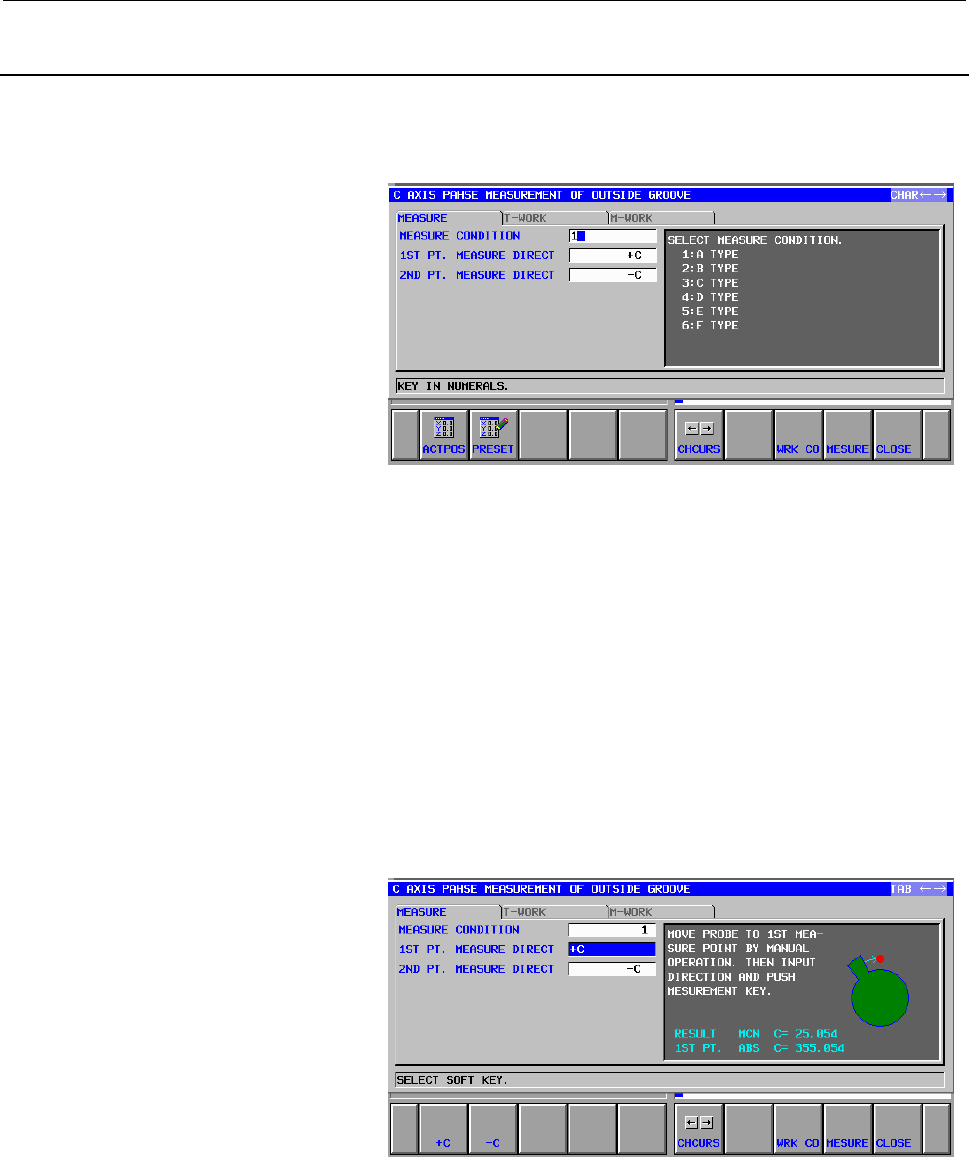

<1> Select "C AXIS PHASE MEASUREMENT OF OUTSIDE

GROOVE" from the workpiece measurement menu.

<2> By moving the probe manually, get it close to the first

measurement point so that measurement is possible with the

movement of the probe along the axis in one direction.

<3> In "MEASURE CONDITION," specify a measurement

condition.

<4> In "1ST PT. MEASURE DIRECT," select a measurement

direction from the [+C] and [-C] soft keys.

Usually, no change is needed.

<5> When the [MESURE] soft key is pressed with the cursor placed

on "1ST PT. MEASURE DIRECT," the probe touches the

measurement point automatically, and the current position of the

measurement point is displayed as the measurement result.
