2.MEASUREMENT CYCLE B-63874EN-1/02

- 104 -

2.2.5 Stylus Ball Center Offset Measurement-B

The offset between the center of the stylus ball and the center of the

spindle is measured.

NOTE

A reference workpiece needs to be accurately

placed on a table whose center position is known.

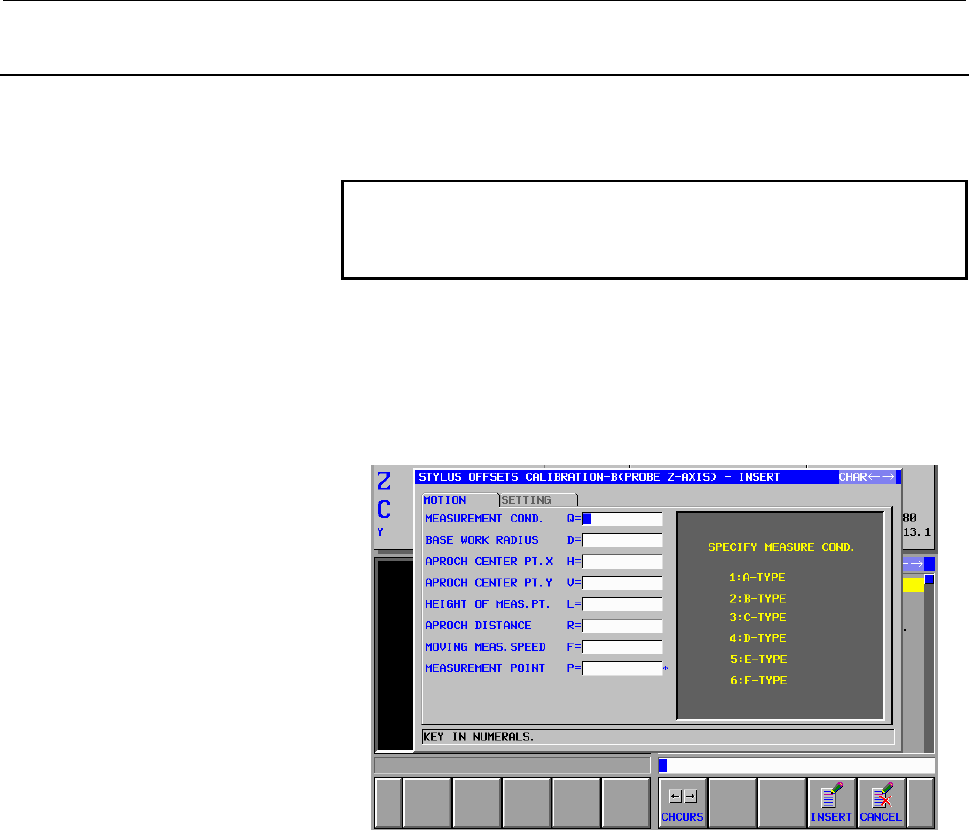

When you select "STYLUS OFFSETS CALIBRATION-B (PROBE

Z-AXIS)" on the calibration menu selection screen of the

measurement cycle, the screen below appears.

Make a measurement on the XY plane.

Measurement motion screen

- MEASUREMENT COND.

Specify a measurement condition group number to be referenced at

the time of measurement.

The result of measurement is set as calibration data of the group

number specified here.

Enter a numeric value.

- BASE WORK RADIUS

Enter the diameter of the reference workpiece.

Enter a numeric value.

- APROCH CENTER PT. X

Enter the X coordinate of the center of the reference workpiece.

Enter a numeric value.
