B-63874EN-1/02 2.MEASUREMENT CYCLE

- 243 -

2.9.4 Outside Diameter Measurement

When the probe is oriented in the X-axis direction, the outside

diameter of a circle is measured.

When you select "OUTSIDE DIAMETER MEASUREMENT

(PROBE X-AXIS)" on the post-machining inspection menu selection

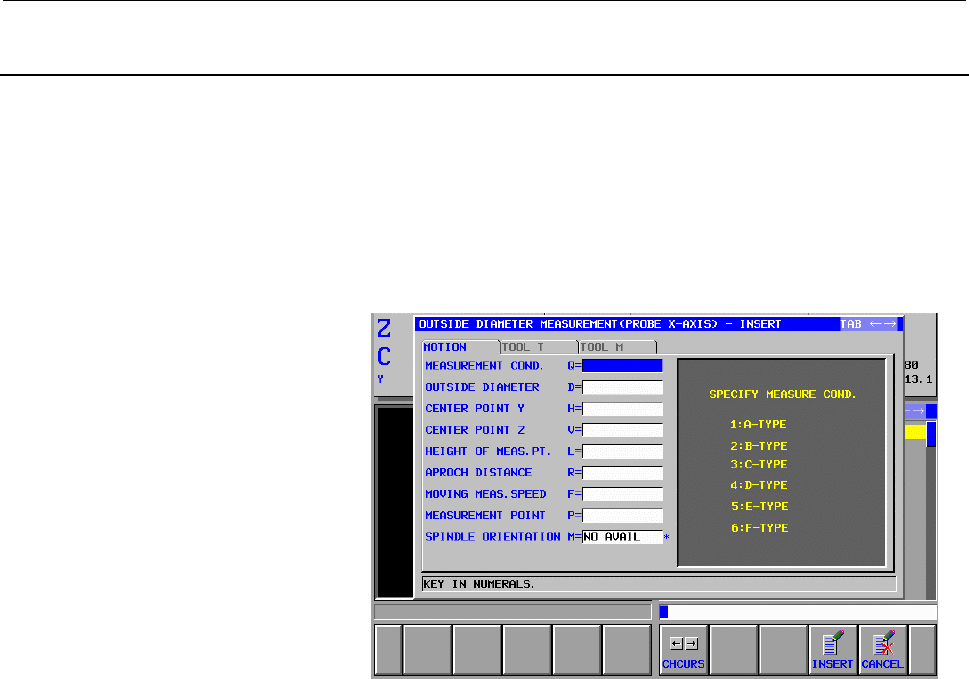

screen of the measurement cycle, the following screen appears:

Measurement motion screen

The detailed descriptions of the input items are the same as for

"OUTSIDE DIAMETER WORK SETUP (PROBE X-AXIS)".

Input screen for automatic tool offset value setting

The displayed items are the same as for "OUTSIDE DIAMETER

MEASUREMENT (PROBE Z-AXIS)".
